Nuvoton Technology Corporation N79E844ASG
Normaler Preis
$94,999.99
Normaler Preis
$99,999.99
Verkaufspreis
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nuvoton Technology Corporation |
| Product Series | N79 |
| Packaging | | Tray |
| Core Processor | 8051 |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LED, LVD, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SOP |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| ROHS |  |

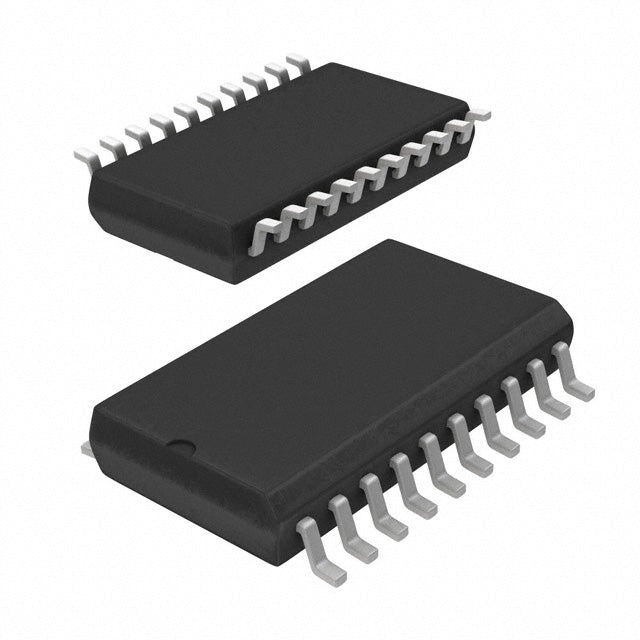

The Nuvoton N79E844ASG is an 8051 MCU in a 20-pin SOIC package. It features 8KB flash, 512B RAM, and operates at 24MHz from 2.4V to 5.5V. Integrated LED control, low-voltage detect, and PWM make it ideal for lighting and portable applications.
- LED-specific features – reduces external components for display drivers.
- 8KB flash – sufficient for compact firmware, lowers cost.
- 2.4V operation – supports battery-powered designs.
- 20-pin SOIC – easy to solder and widely available.
LED Display Panels
Integrated LED features simplify multiplexing; PWM controls brightness.
Battery Chargers
LVD monitors battery voltage; 8KB flash stores charge curves.
Small Home Appliances
20-pin SOIC is cost-effective; WDT prevents lockups.
Signal Conditioning
24MHz speed processes sensor data; 512B RAM buffers samples.
Automotive Interior Lighting
Wide voltage handles load changes; -40°C operation for cabin modules.
Security Systems
KBI reads PIR sensors; BOD ensures alarm integrity.
- Q: What is the flash size?
- A: 8KB (8K x 8) with 512B RAM.
- Q: What package is this?
- A: 20-pin SOIC (7.50mm width).
- Q: Does it have LED driver support?
- A: Yes, it includes LED features.
- Q: What is the voltage range?
- A: 2.4V to 5.5V.
Base Product Number ：
N79E844
N79E844ASG.pdf
