onsemi NCV78L05ABPREG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.75 | $0.75 |
| 15+ | $0.73 | $10.95 |
| 25+ | $0.71 | $17.75 |
| 50+ | $0.67 | $33.50 |
| 100+ | $0.59 | $59.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | 49dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Through Hole |

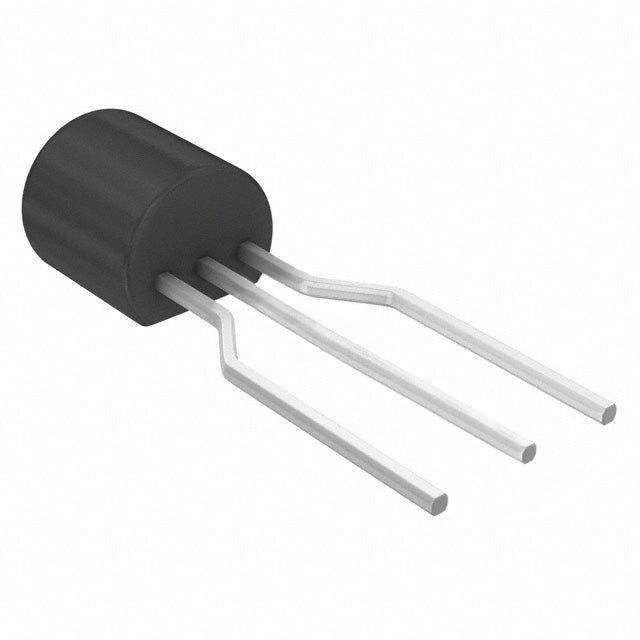

| Package / Case | TO-226-3, TO-92-3 Long Body, Formed Leads |
| Supplier Device Package | TO-92 (TO-226) |
| ROHS |  |
The NCV78L05ABPREG from onsemi is a fixed 5V linear voltage regulator capable of delivering up to 100mA. Housed in a compact TO-92 package, this LDO provides a simple and reliable solution for generating a stable 5V rail from higher input voltages. With a quiescent current of 6mA and 49dB PSRR at 120Hz, it is well-suited for automotive and industrial applications requiring clean, regulated power.
- Automotive Qualified: The NCV prefix ensures AEC-Q100 compliance, making it suitable for harsh automotive environments.
- Stable 5V Output: Fixed 5V output simplifies design and ensures consistent performance for logic and analog circuits.
- Compact TO-92 Package: Easy to integrate into space-constrained designs with through-hole mounting.
- Good Ripple Rejection: 49dB PSRR at 120Hz helps filter mains-related noise in power supplies.
Automotive Power Supplies
With its automotive-grade qualification (NCV prefix), this regulator is ideal for powering sensors, microcontrollers, and interface circuits in 12V vehicle electrical systems, providing a stable 5V rail.
Industrial Control Systems
The 100mA output is sufficient for op-amps, comparators, and logic ICs in industrial controllers, ensuring reliable operation from a regulated 5V supply.
Battery-Powered Equipment
For low-power portable devices, the NCV78L05ABPREG offers a simple, cost-effective solution to derive a stable 5V from a higher battery voltage, extending battery life with its moderate quiescent current.
Consumer Electronics
Use it to power small audio amplifiers, LED drivers, or display drivers in consumer devices where a clean, regulated 5V supply is required.
Telecommunication Circuits
Provides a stable local 5V rail for line drivers, receivers, and logic in telecom modules, with 49dB PSRR at 120Hz to reject power supply noise.
Test and Measurement
In bench instruments, this LDO can power reference circuits and signal conditioning stages, ensuring accurate measurements with a low-noise 5V supply.
- Q: What is the output voltage of the NCV78L05ABPREG?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout voltage is not specified in the provided data.
- Q: What is the quiescent current?
- A: The quiescent current is 6 mA.
- Q: What package is available?
- A: It comes in a TO-92 (TO-226) package.
