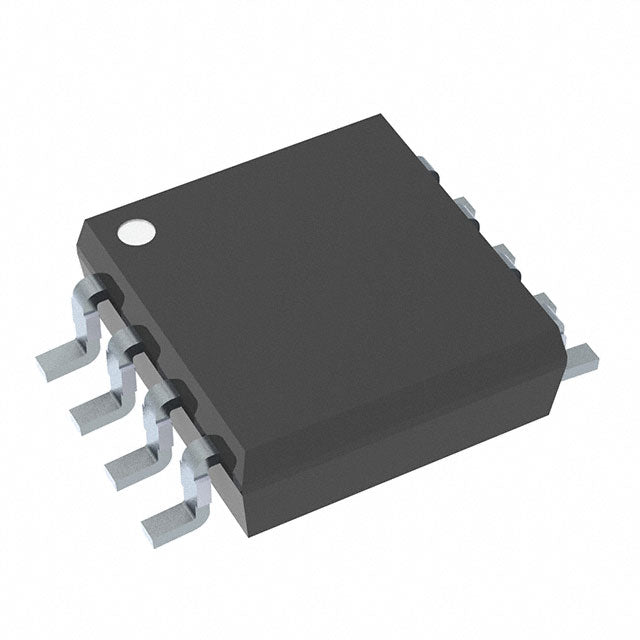

Nisshinbo Micro Devices Inc. NJU7089R-TE2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 5.06 | Dhs. 5.06 |
| 15+ | Dhs. 4.89 | Dhs. 73.35 |
| 25+ | Dhs. 4.79 | Dhs. 119.75 |
| 50+ | Dhs. 4.52 | Dhs. 226.00 |
| 100+ | Dhs. 3.99 | Dhs. 399.00 |
| N+ | Dhs. 0.80 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 1.2W x 1 @ 8Ohm |
| Voltage - Supply | 1.8V ~ 5.5V |
| Features | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Supplier Device Package | 8-VSP |
| Package / Case | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) |
| ROHS |  |
This mono Class AB amplifier delivers 1.2W into 8Ω loads from a 1.8V to 5.5V supply. Housed in a compact 8-VSP package, it is designed for low-voltage battery-powered applications such as portable speakers, toys, and radios. Its efficient operation ensures extended battery life in portable devices.
- Wide Voltage Range: Operates from 1.8V to 5.5V, compatible with various battery chemistries.
- High Output Power: 1.2W into 8Ω provides ample volume for portable speakers.
- Compact Package: 8-MSOP footprint saves space in dense PCB layouts.
- Low Power Consumption: Ideal for battery-operated devices requiring long runtime.
Portable Bluetooth Speakers
The NJU7089R-TE2's 1.2W output into 8Ω and 1.8V minimum supply make it ideal for compact mono Bluetooth speakers requiring high efficiency from a single cell.
Battery-Powered Toys
Its low voltage operation down to 1.8V allows direct connection to two AA batteries, providing clear audio in talking toys and interactive games.
Handheld Radios
The small MSOP package and low quiescent current suit portable AM/FM radios, delivering sufficient volume for personal listening.
Alarm Systems
With 1.2W output, it can drive piezo or small speakers in security alarms, ensuring audible alerts with minimal power draw.
DIY Audio Projects
Hobbyists can use this amplifier for simple mono audio circuits, benefiting from its wide voltage range and easy surface-mount soldering.
| Model | Package | Voltage Range | Output Power (Typical) |
|---|---|---|---|
| NJU7089R-TE2 | 8-VSP (MSOP) | 1.8V ~ 5.5V | 1.2W x 1 @ 8Ω |
| NJW1280MG2-TE1 | 16-EQFN (2.3x2.3) | 2V ~ 5.5V | N/A |
| TPA6111A2D | 8-SOIC | 2.5V ~ 5.5V | 150mW x 2 @ 16Ω |
- Q: What is the output power of the NJU7089R-TE2?
- A: It delivers 1.2W into an 8Ω load, suitable for mono speaker applications.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V, ideal for low-voltage battery-powered devices.
- Q: What package does it come in?
- A: It is available in an 8-VSP (MSOP) surface-mount package.
- Q: Is it a mono or stereo amplifier?
- A: It is a 1-channel (mono) Class AB amplifier.
- Q: What are typical applications?
- A: It is used in portable speakers, toys, and other battery-operated audio devices.
