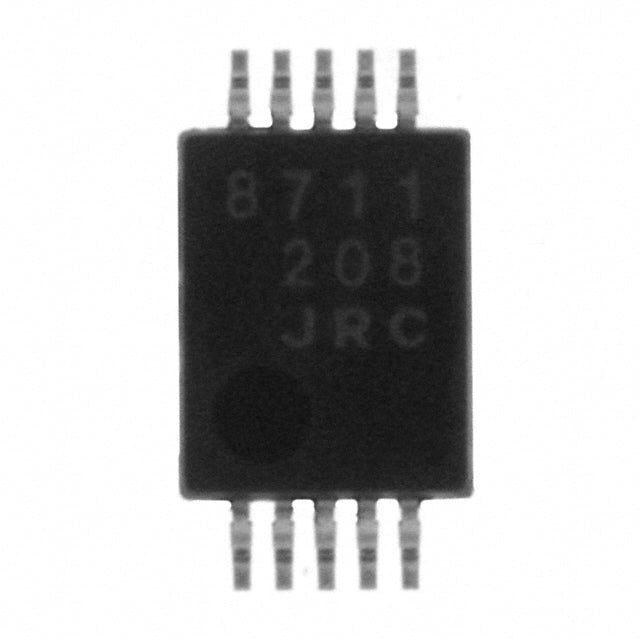

Nisshinbo Micro Devices Inc. NJU8711V-TE2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.87 | Dhs. 7.87 |
| 15+ | Dhs. 7.62 | Dhs. 114.30 |
| 25+ | Dhs. 7.45 | Dhs. 186.25 |
| 50+ | Dhs. 7.04 | Dhs. 352.00 |
| 100+ | Dhs. 6.21 | Dhs. 621.00 |
| N+ | Dhs. 1.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Type | Class D |
| Output Type | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | - |
| Voltage - Supply | 2V ~ 3.6V |
| Features | Digital Inputs, Standby |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Supplier Device Package | 10-SSOP |
| Package / Case | 10-LFSOP (0.173", 4.40mm Width) |
| ROHS |  |
The NJU8711V-TE2 is a high-efficiency stereo Class D audio amplifier designed for low-voltage applications. Operating from 2V to 3.6V, it delivers clear sound with minimal power loss, making it ideal for battery-powered portable devices. Its digital input interface simplifies system design, while the standby mode conserves energy when not in use. Housed in a compact 10-SSOP surface-mount package, this IC is perfect for space-constrained applications such as Bluetooth speakers, wireless earbuds, and smart home intercoms. With a robust operating temperature range of -40°C to 85°C, it ensures reliable performance in diverse environments.
- Low Voltage Operation: Operates from 2V to 3.6V, enabling direct battery-powered use without boost converters.
- High Efficiency Class D: Minimizes heat generation and extends battery life in portable devices.
- Digital Input Support: Simplifies connection to digital audio sources, reducing external component count.
- Compact Package: 10-SSOP footprint saves PCB space for miniaturized designs.
- Standby Mode: Reduces power consumption to near zero when audio is not needed, ideal for always-on applications.
Portable Bluetooth Speakers
The NJU8711V-TE2's low supply voltage range (2V to 3.6V) and Class D efficiency make it perfect for battery-powered Bluetooth speakers, delivering clear stereo sound with minimal power consumption.
Wireless Earbuds
Its compact 10-SSOP package and digital input capability allow for seamless integration into wireless earbuds, enabling high-quality audio playback while extending battery life.
Smart Home Intercoms
The standby feature reduces power draw when idle, making this IC suitable for always-on intercom systems that require instant audio activation.
Portable AM/FM Radios
With a wide operating temperature range and low voltage operation, the NJU8711V-TE2 is ideal for handheld radios, ensuring consistent performance in outdoor conditions.
Wearable Audio Devices
The small footprint and low power consumption enable integration into wearable tech like smart glasses or fitness trackers with audio feedback.
DIY Audio Projects
Hobbyists can leverage the digital inputs and simple standby control to build custom low-power stereo amplifiers for portable or embedded audio projects.
| Model | Package | Voltage Range | Output Power (Typical) |
|---|---|---|---|
| NJU8711V-TE2 | 10-SSOP | 2V ~ 3.6V | Not specified |
| NJU8710V-TE2 | 10-SSOP | 2V ~ 3.6V | Not specified |
| NJU8712V-TE2 | 10-SSOP | 2V ~ 3.6V | Not specified |
- Q: What is the supply voltage range for the NJU8711V-TE2?
- A: The NJU8711V-TE2 operates from 2V to 3.6V, making it ideal for low-voltage portable devices.
- Q: Does this amplifier support stereo output?
- A: Yes, it is a 2-channel (stereo) Class D amplifier, perfect for compact audio systems.
- Q: What are the key features of this IC?
- A: It features digital inputs and a standby mode for power saving, suitable for battery-powered applications.
- Q: What is the operating temperature range?
- A: The NJU8711V-TE2 operates from -40°C to 85°C, ensuring reliability in various environments.
- Q: What package is available?
- A: It comes in a 10-SSOP (10-LFSOP) surface-mount package, ideal for space-constrained designs.
