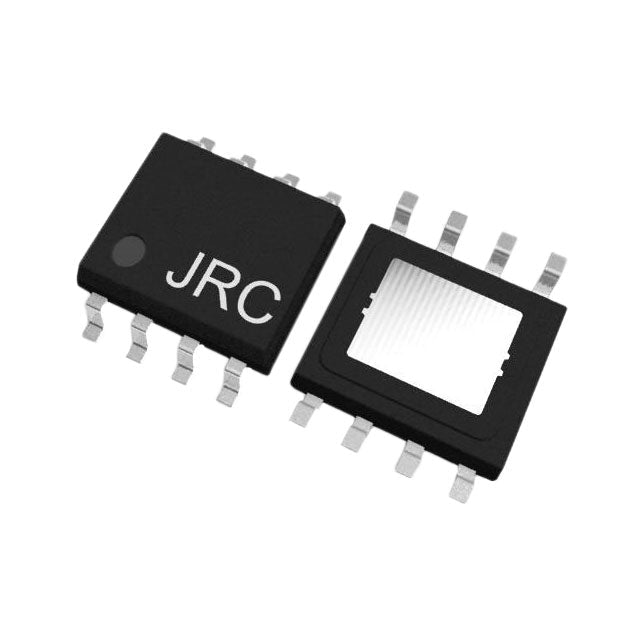

Nisshinbo Micro Devices Inc. NJU8759AGM1-TE1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.49 | Dhs. 7.49 |
| 15+ | Dhs. 7.27 | Dhs. 109.05 |
| 25+ | Dhs. 7.11 | Dhs. 177.75 |
| 50+ | Dhs. 6.72 | Dhs. 336.00 |
| 100+ | Dhs. 5.93 | Dhs. 593.00 |
| N+ | Dhs. 1.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 1.7W x 1 @ 8Ohm; 3W x 1 @ 4Ohm |
| Voltage - Supply | 1.8V ~ 5.5V |
| Features | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Grade | - |
| Qualification | - |
| Supplier Device Package | 8-HSOP |
| Package / Case | 8-SOIC (0.173", 4.40mm Width) Exposed Pad |
| ROHS |  |
The NJU8759AGM1-TE1 is a high-efficiency, mono Class D audio amplifier designed for portable and industrial applications. Operating from 1.8V to 5.5V, it delivers up to 3W into 4Ω loads. The 8-HSOP package with exposed pad ensures effective heat dissipation, while the wide -40°C to 105°C temperature range supports harsh environments. Ideal for Bluetooth speakers, automotive alerts, and IoT devices, it provides clear audio with minimal power loss.
- High Efficiency: Class D operation minimizes power loss, extending battery life in portable devices.
- Wide Temperature Range: -40°C to 105°C enables use in automotive and industrial settings.
- Low Voltage Operation: 1.8V-5.5V supply works with single-cell batteries and logic rails.
- Compact Package: 8-HSOP with exposed pad saves space and improves thermal performance.
Portable Bluetooth Speakers
The NJU8759AGM1-TE1's 3W output into 4Ω and wide 1.8V-5.5V supply make it perfect for small, battery-powered Bluetooth speakers requiring high efficiency.
Automotive Interior Alerts
With an operating temperature range up to 105°C, this amplifier can handle the heat inside vehicles for chimes and warning tones.
Industrial Alarm Systems
Its robust temperature range and mono output are ideal for driving alarms in industrial control panels.
Wearable Devices
The small 8-HSOP package and low voltage operation enable integration into smartwatches and fitness trackers for voice feedback.
IoT Voice Modules
High efficiency extends battery life in IoT devices that need to play short audio clips or voice prompts.
DIY Projects
Hobbyists can use this chip for compact, efficient mono amplifiers in custom audio projects.
| Model | Package | Voltage Range | Output Power (Typical) |
|---|---|---|---|
| NJU8759AGM1-TE1 | 8-HSOP | 1.8V ~ 5.5V | 1.7W @ 8Ω / 3W @ 4Ω |
| NJU8759A | 8-HSOP | 1.8V ~ 5.5V | 1.7W @ 8Ω / 3W @ 4Ω |
| NJU8758A | 8-HSOP | 2.7V ~ 5.5V | 1.5W @ 8Ω |
| NJU8760A | 8-HSOP | 2.5V ~ 5.5V | 2W @ 8Ω |
- Q: What is the output power of the NJU8759AGM1-TE1?
- A: It delivers 1.7W into 8Ω or 3W into 4Ω, making it suitable for compact mono speakers.
- Q: What is the supply voltage range?
- A: The device operates from 1.8V to 5.5V, ideal for single-cell battery applications.
- Q: What is the operating temperature range?
- A: It can operate from -40°C to 105°C, suitable for industrial and automotive environments.
- Q: What is the amplifier class?
- A: It is a Class D amplifier, offering high efficiency for extended battery life.
- Q: What package is available?
- A: It comes in an 8-HSOP package with an exposed pad for thermal management.
