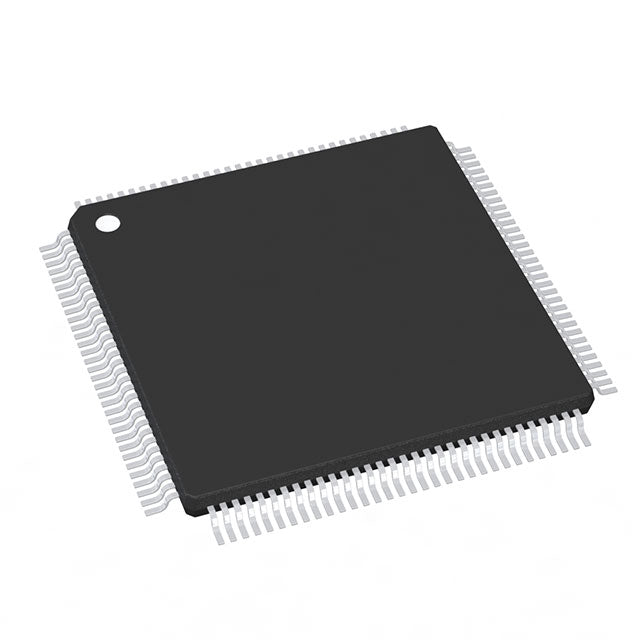

Nuvoton Technology Corporation NUC978DK61Y
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.76 | $39.76 |
| 15+ | $9.14 | $137.10 |
| 25+ | $8.95 | $223.75 |
| 50+ | $8.45 | $422.50 |
| 100+ | $7.46 | $746.00 |
| N+ | $1.49 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nuvoton Technology Corporation |
| Product Series | NUC970 |
| Packaging | Tray | Tray |
| Core Processor | ARM926EJ-S |
| Core Size | 32-Bit Single-Core |
| Speed | 300MHz |
| Connectivity | Ethernet, I2C, IrDA, MMC/SD/SDIO, SmartCard, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, LVD, LVR, POR, PWM, WDT |
| Number of I/O | 86 |
| Program Memory Size | 68KB (68K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 56K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.14V ~ 3.63V |
| Data Converters | A/D 5x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 128-LQFP (14x14) |
| Package / Case | 128-LQFP |
| ROHS |  |
The Nuvoton NUC978DK61Y is a high-performance 32-bit microcontroller based on the ARM926EJ-S core. Operating at 300MHz, it provides 68KB flash and 56KB RAM. Its integrated LCD controller and comprehensive safety features make it a strong candidate for industrial and consumer applications requiring display and control.
- High-Speed Core: 300MHz ARM926EJ-S delivers fast application processing.
- Integrated LCD: Direct display driving reduces external component count.
- Wide Voltage Range: 1.14V to 3.63V supports diverse power designs.
- Comprehensive Protection: Includes LVD, LVR, and POR for system reliability.
Industrial HMI Terminals
The integrated LCD controller and 300MHz ARM926 core enable rich graphical user interfaces.
Networked Printers
Its high-speed processing and DMA support efficient data streaming for print engines.
Smart Vending Machines
The LCD interface and multiple I/O options simplify integration with payment and inventory systems.
Building Automation Controllers
With a wide voltage range and robust reset features, it ensures reliable operation in HVAC systems.
Portable Test Instruments
Its low-voltage operation and LCD support make it ideal for battery-powered measurement devices.
Point-of-Sale (POS) Terminals
The combination of processing power and display control enables fast transaction processing.
- Q: What processor core does the NUC978DK61Y use?
- A: It is based on the ARM926EJ-S core, running at 300MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.14V to 3.63V, offering flexibility for various power rails.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD interface for direct display driving.
- Q: What is the package type?
- A: It comes in a 128-LQFP package, suitable for moderate-density PCBs.
- Q: What are the key safety features?
- A: It includes Brown-out Detect, LVD, LVR, and POR for reliable operation.
NUC978DK61Y.pdf
- Q: What processor core does the NUC978DK61Y use?
- A: It is based on the ARM926EJ-S core, running at 300MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.14V to 3.63V, offering flexibility for various power rails.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD interface for direct display driving.
- Q: What is the package type?
- A: It comes in a 128-LQFP package, suitable for moderate-density PCBs.
- Q: What are the key safety features?
- A: It includes Brown-out Detect, LVD, LVR, and POR for reliable operation.
