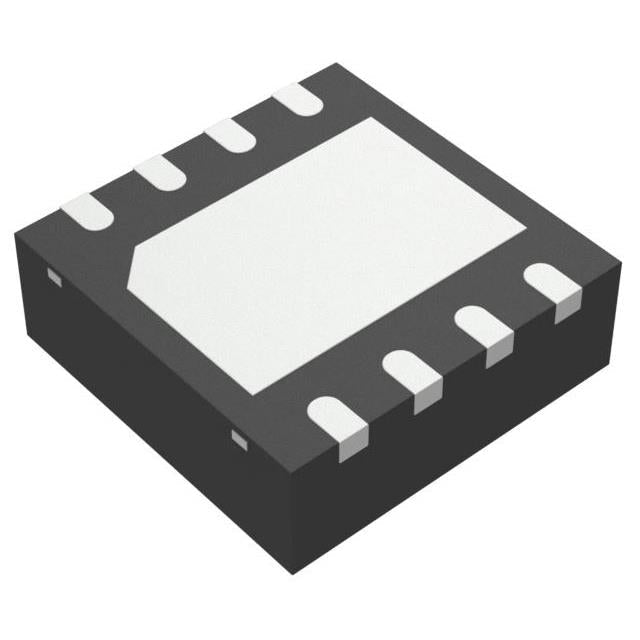

Microchip Technology PIC12HV615-E/MD
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 | Dhs. 355,870.06 |
| 15+ | Dhs. 344,632.06 | Dhs. 5,169,480.90 |
| 25+ | Dhs. 337,140.05 | Dhs. 8,428,501.25 |
| 50+ | Dhs. 318,410.05 | Dhs. 15,920,502.50 |
| 100+ | Dhs. 280,950.05 | Dhs. 28,095,005.00 |
| N+ | Dhs. 56,190.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 12F |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 5 |
| Program Memory Size | 1.75KB (1K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (4x4) |
| Package / Case | 8-VDFN Exposed Pad |
| ROHS |  |
PIC12HV615-E/MD - High-Performance 8-Bit Microcontroller
The PIC12HV615-E/MD from Microchip Technology is a versatile 8-bit microcontroller designed for embedded and industrial applications. Featuring a 20MHz internal oscillator, 1.75KB flash memory, and advanced peripherals including PWM, brown-out detection, and watchdog timer, this MCU delivers reliable performance across a wide voltage range (2V-5V) and extended temperature range (-40°C to 125°C).
With 5 I/O pins, 4x10-bit A/D converters, and a compact 8-DFN surface mount package, the PIC12HV615-E/MD is ideal for space-constrained designs requiring precision analog sensing and control. Perfect for battery-powered devices, sensor nodes, motor control, and low-power embedded systems.
Key Features & Benefits
- Wide Operating Voltage: 2V to 5V supply range for flexible power design
- High-Speed Processing: 20MHz internal oscillator for fast execution
- Integrated Peripherals: PWM, WDT, brown-out detection for robust operation
- Analog Capability: 4 channels of 10-bit A/D conversion for precision sensing
- Extended Temperature Range: -40°C to 125°C for industrial and automotive applications
- Compact Footprint: 8-DFN (4x4mm) package saves board space
- RoHS Compliant: Environmentally friendly and regulation-compliant
Applications
The PIC12HV615-E/MD is well-suited for battery-powered devices, sensor interfaces, motor control, LED drivers, temperature monitoring, portable instrumentation, and general-purpose embedded control systems.
