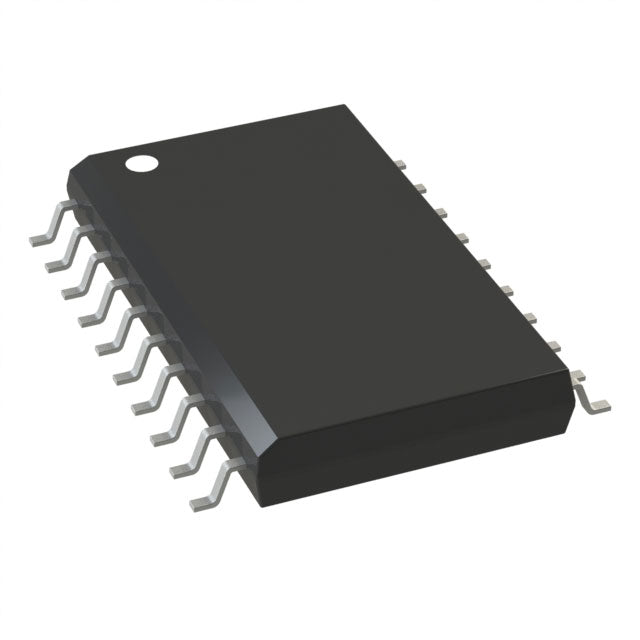

Microchip Technology PIC16F721-E/SO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 16F |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SOIC |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
The PIC16F721-E/SO from Microchip is a versatile 8-bit microcontroller in a 20-pin SOIC package. It supports 1.8V to 5.5V operation and runs at 16MHz, with 7KB flash and 256 bytes RAM. Integrated peripherals include PWM, Brown-out Reset, POR, and WDT. Its extended temperature range makes it suitable for automotive and industrial applications where reliability is critical.
- SOIC package: Easier for manual assembly and rework compared to QFN.
- Wide voltage range: Flexible for various power sources.
- High-temperature rating: Suitable for under-hood automotive use.
- Integrated watchdog: Enhances system robustness in noisy environments.
Through-Hole Prototyping
The SOIC package is easier to hand-solder, making it ideal for breadboard prototyping and small-batch production.
Automotive Body Electronics
With 125°C rating and 5.5V operation, it can handle door lock controllers or window lift modules.
Industrial Sensor Interfaces
PWM outputs can drive alarms or indicators, while WDT ensures recovery from software faults in noisy environments.
Consumer Appliances
Used in washing machine timers or microwave control panels, leveraging the 7KB flash for control algorithms.
Power Supply Monitoring
The Brown-out Reset prevents erratic behavior during power dips, ideal for SMPS feedback loops.
HVAC Thermostats
Reads temperature sensors and controls relays via PWM, operating reliably across wide temperature swings.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V.
- Q: What package is this variant?
- A: It uses a 20-SOIC (0.295", 7.50mm width) package.
- Q: Does it have PWM?
- A: Yes, it includes PWM, Brown-out Reset, POR, and WDT.
- Q: What is the maximum speed?
- A: The CPU runs at up to 16MHz.
- Q: What is the operating temperature?
- A: It is rated for -40°C to 125°C.
