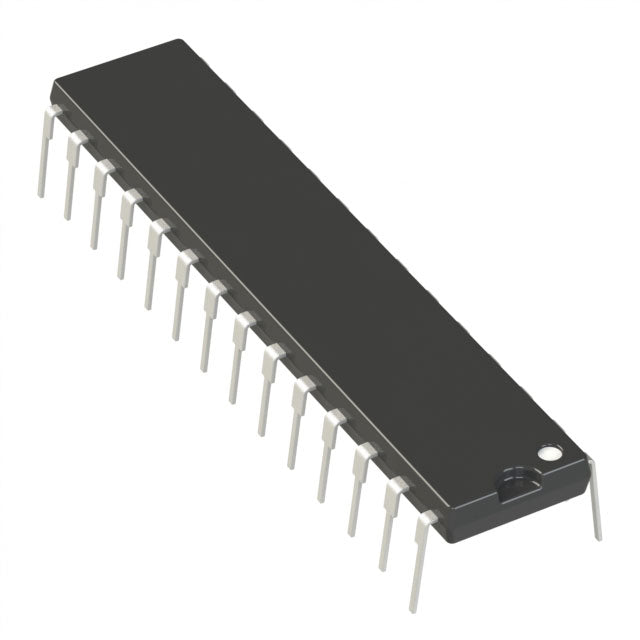

Microchip Technology PIC16F723-E/SP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 16F |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 11x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 28-SPDIP |
| Package / Case | 28-DIP (0.300", 7.62mm) |
| ROHS |  |
The Microchip PIC16F723-E/SP is a robust 8-bit microcontroller designed for extended temperature environments. Operating from 1.8V to 5.5V and up to 20MHz, it provides 7KB of flash memory. This 28-pin DIP package is ideal for through-hole manufacturing and applications requiring high reliability in harsh conditions, such as automotive and industrial control.
- Extended Temperature Range: Rated for -40°C to +125°C, ensuring reliable operation in extreme environments.
- Through-Hole Package: The DIP package is easy to prototype and assemble, ideal for legacy and high-vibration applications.
- Larger Memory: 7KB of flash provides more code space for complex control algorithms compared to smaller PIC16 devices.
- Wide Voltage Operation: Supports 1.8V to 5.5V, offering flexibility in power supply design.
Automotive Engine Control Sensors
The extended temperature range (-40°C to +125°C) makes it suitable for under-hood sensor interfaces and small actuators in automotive systems.
Industrial Process Control
Its robust temperature rating and 5V operation allow it to function reliably in harsh industrial environments, such as factory floor monitoring.
HVAC Zone Controllers
Can manage temperature sensors, damper actuators, and fan relays in commercial and residential HVAC systems.
White Goods (Washing Machines, Dishwashers)
The 7KB memory and PWM capabilities are sufficient for controlling wash cycles, pumps, and valves in major appliances.
Outdoor Lighting and Signage
The wide temperature range ensures reliable operation in outdoor LED drivers and signage controllers exposed to extreme weather.
Power Tools
Can handle the high-temperature environment of motor control in drills, saws, and other power tools, providing speed control and protection.
- Q: What is the operating temperature range?
- A: This variant is rated for extended temperature operation from -40°C to +125°C.
- Q: What is the maximum CPU speed?
- A: It operates at up to 20MHz.
- Q: How much program memory does it have?
- A: It features 7KB of flash program memory (4K x 14).
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V.
- Q: What package is this?
- A: It is available in a 28-pin DIP (0.300" width) package, suitable for through-hole assembly.
