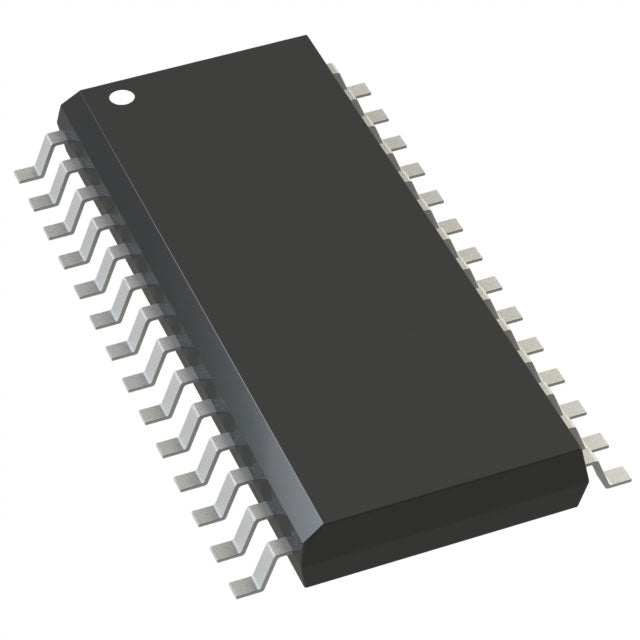

Microchip Technology PIC16F726-E/SO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 16F |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 368 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 11x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOIC |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
The PIC16F726-E/SO is a reliable 8-bit MCU from Microchip in a 28-SOIC package. It operates from 1.8V to 5.5V at 20MHz, offering 14KB flash and 368 bytes RAM. With integrated Brown-out Reset, POR, PWM, and WDT, it provides a cost-effective solution for industrial and automotive control applications.
- SOIC package is easier to solder and inspect than QFN.
- 14KB flash supports complex firmware.
- 1.8V-5.5V operation enables battery or 5V systems.
- Extended temperature range (-40°C to 125°C) for harsh environments.
Through-Hole Prototyping
The SOIC package is easier to hand-solder than QFN, making it ideal for development boards and low-volume production.
Industrial Actuators
With 14KB flash and PWM, it can control linear actuators in factory automation with precise positioning.
Automotive Sensor Modules
Its wide temperature range and robust reset circuitry suit exhaust gas or pressure sensor interfaces.
Smart Lighting Ballasts
PWM outputs allow dimming control for LED drivers in commercial lighting systems.
Portable Test Equipment
Low voltage operation and rich peripherals enable handheld oscilloscopes or logic analyzers.
HVAC Zone Controllers
Multiple timers and PWM channels manage damper motors and temperature sensors in building automation.
- Q: What is the difference between PIC16F726-E/SO and -E/ML?
- A: The -E/SO uses a 28-SOIC package, while -E/ML uses a 28-VQFN package. Electrical specs are identical.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V.
- Q: How much flash memory does it have?
- A: It has 14KB (8K x 14) of flash program memory.
- Q: Does it include a watchdog timer?
- A: Yes, it has a WDT along with Brown-out Reset and POR.
- Q: What is the maximum speed?
- A: It runs at up to 20MHz.
