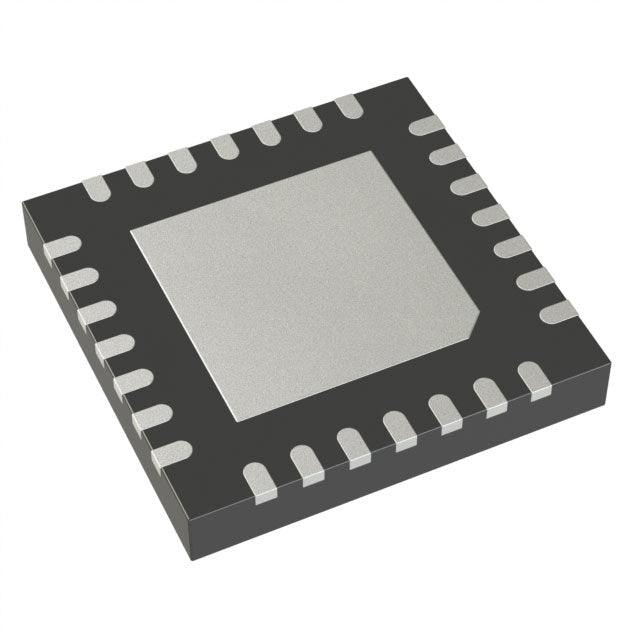

Microchip Technology PIC16LF1716-E/ML
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 16F |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 14KB (8K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 17x10b; D/A 1x5b, 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-QFN (6x6) |
| Package / Case | 28-VQFN Exposed Pad |
| ROHS |  |
The Microchip PIC16LF1716-E/ML is an 8-bit PIC microcontroller engineered for extended temperature environments. It operates from 1.8V to 3.6V and delivers 32MHz performance. The device features 14KB Flash and 1KB RAM, providing ample resources for complex control algorithms. Housed in a 28-VQFN package, it integrates PWM, WDT, and Brown-out Reset, ensuring dependable operation in automotive and industrial applications.
- Extended Temperature Range: Rated for -40°C to 125°C, enabling use in demanding industrial and automotive settings.
- Larger Memory: 14KB Flash and 1KB RAM support more sophisticated firmware.
- Low-Power Operation: 1.8V minimum supply reduces heat generation and power consumption.
- Robust Reset Features: Brown-out Reset and WDT enhance system reliability in noisy environments.
Automotive Engine Control Modules
The extended temperature range (-40°C to 125°C) and robust reset features make it suitable for under-hood automotive electronics.
Industrial Actuator Drivers
With 14KB Flash and PWM, it can manage complex actuator sequences in factory automation equipment.
High-Temperature Sensing
Ideal for oil & gas or heavy machinery sensors that experience extreme thermal conditions.
Power Supply Controllers
Its fast 32MHz core and PWM capabilities enable precise voltage regulation in DC-DC converters.
HVAC System Controllers
Reliable operation across temperature extremes supports building automation in unconditioned spaces.
Off-Road Vehicle Electronics
Withstands vibration and temperature swings, making it suitable for agricultural or construction equipment.
- Q: What is the temperature range for the PIC16LF1716-E/ML?
- A: It operates from -40°C to 125°C, suitable for harsh environments.
- Q: How much Flash memory is available?
- A: It has 14KB (8K x 14) of program Flash memory.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V.
- Q: Does it have a PWM module?
- A: Yes, it includes PWM, along with WDT and Brown-out Reset.
- Q: What package does it come in?
- A: It is available in a 28-VQFN Exposed Pad package.
