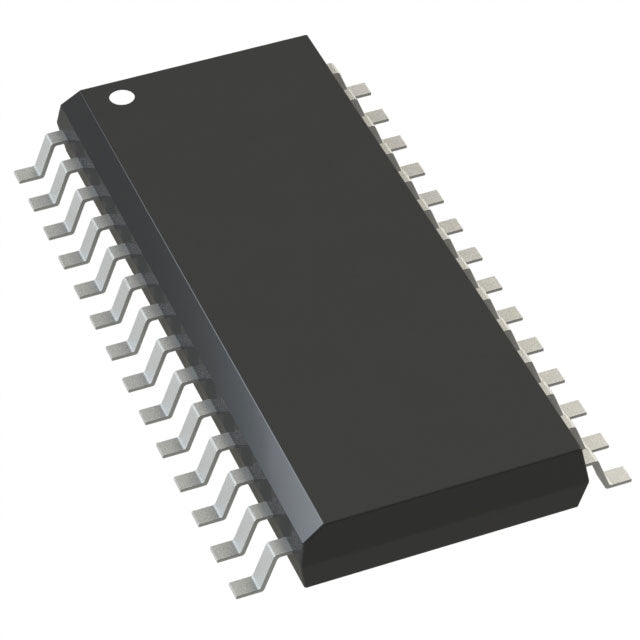

Microchip Technology PIC16LF1933-E/SO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 16F |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | I2C, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 11x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOIC |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
The PIC16LF1933-E/SO is a low-power 8-bit PIC microcontroller from Microchip. It operates from 1.8V to 3.6V at up to 32MHz, featuring 7KB flash and 256 bytes RAM. The 28-SOIC package includes an integrated LCD driver, PWM, and brown-out detection, making it ideal for portable and industrial applications.
- Ultra-low power consumption: 1.8V operation reduces energy draw in battery devices.
- Integrated LCD driver: Eliminates external display ICs, saving board space and cost.
- Wide temperature range: -40°C to 125°C suits harsh industrial environments.
- High-speed 32MHz core: Handles complex control loops with ample margin.
Battery-Powered Sensor Nodes
Low 1.8V operation and low-power sleep modes extend battery life in remote IoT sensors.
Portable Medical Devices
Integrated LCD driver enables compact glucose meters and thermometers without external display ICs.
Industrial Control Panels
Wide temperature range and PWM outputs drive HMI backlights and motor control loops.
Automotive Interior Lighting
3.6V max supply and robust POR/WDT ensure reliable operation in vehicle ambient lighting modules.
Smart Home Thermostats
LCD segment driving plus 7KB flash allow custom UI and scheduling logic in a single chip.
Wearable Fitness Trackers
Small SOIC package and low-power features suit compact, always-on step counters.
- Q: What is the operating voltage range?
- A: 1.8V to 3.6V.
- Q: What is the maximum speed?
- A: 32MHz.
- Q: Does it have an LCD driver?
- A: Yes, integrated LCD driver.
- Q: What is the package type?
- A: 28-SOIC.
- Q: What is the operating temperature?
- A: -40°C to 125°C.
