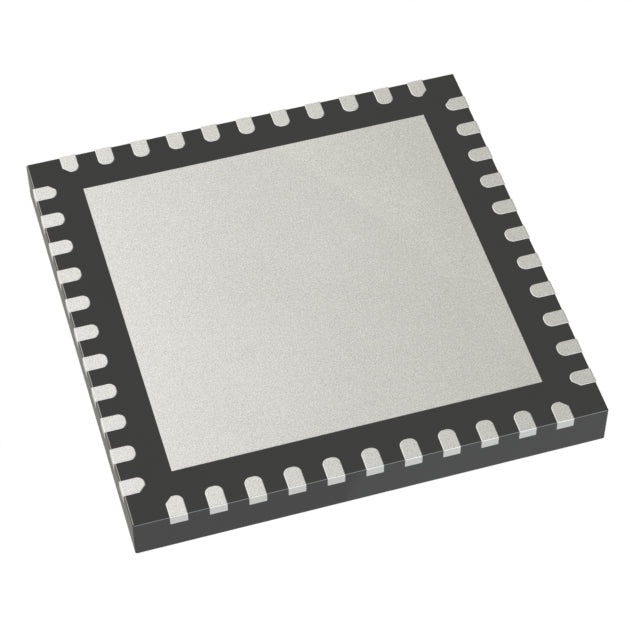

Microchip Technology PIC16LF724-E/ML
Normaler Preis
$94,999.99
Normaler Preis
$99,999.99
Verkaufspreis
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 16F |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 36 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 14x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-QFN (8x8) |
| Package / Case | 44-VQFN Exposed Pad |
| ROHS |  |
The PIC16LF724-E/ML is a low-power 8-bit PIC microcontroller from Microchip, operating at 1.8-3.6V and 20MHz. It offers 7KB flash, 192 bytes RAM, and integrated peripherals like PWM, WDT, and Brown-out Reset in a compact 44-VQFN package, designed for reliable embedded control.
- Ultra-low voltage operation (1.8V) – extends battery life in portable designs.
- Wide temperature range (-40°C to 125°C) – reliable in industrial and automotive settings.
- Integrated PWM and WDT – reduces external components and improves system robustness.
- Compact VQFN package – saves PCB space for space-constrained applications.
Battery-Powered Sensor Nodes
Operates from 1.8V, extending battery life in IoT and portable sensing.
Motor Control for Small Appliances
Integrated PWM and WDT enable reliable brushless DC motor control.
Industrial Temperature Monitoring
Rated -40°C to 125°C, suitable for harsh environments.
Portable Medical Devices
Low power and small VQFN package fit compact, low-voltage designs.
Automotive Body Electronics
High-temperature tolerance and robust reset features support automotive modules.
LED Lighting Drivers
PWM outputs allow dimming and color control with minimal external parts.
- Q: What is the operating voltage range?
- A: 1.8V to 3.6V, ideal for low-power battery applications.
- Q: What package is available?
- A: 44-VQFN with exposed pad for improved thermal performance.
- Q: Does it include PWM modules?
- A: Yes, it features PWM, plus Brown-out Reset, POR, and WDT.
- Q: What is the maximum speed?
- A: 20MHz with 7KB program memory and 192 bytes RAM.
Base Product Number ：
PIC16LF724
PIC16LF724-E/ML.pdf
