Microchip Technology PIC18F1230-E/P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 18F |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | UART/USART |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 4KB (2K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 18-PDIP |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| ROHS |  |

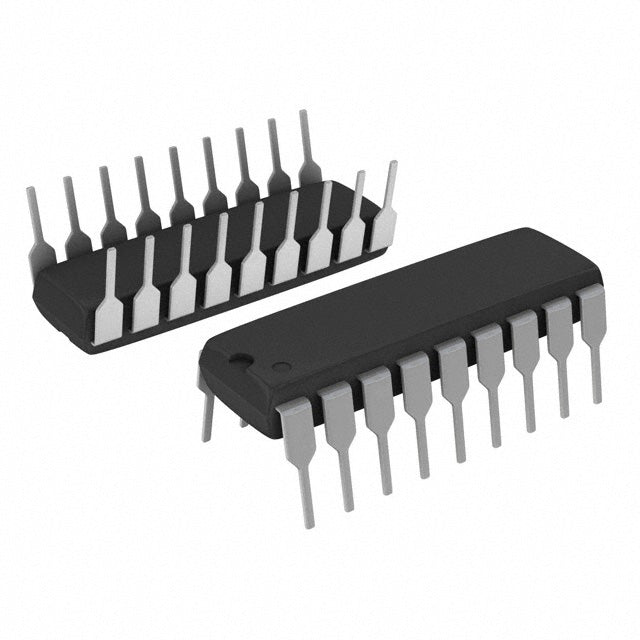

The Microchip PIC18F1230-E/P is a compact 8-bit microcontroller for cost-sensitive 5V applications. Running at 25MHz, it provides 4KB of flash and 256 x 8 RAM. Its 18-pin DIP package and extended temperature range make it a simple, reliable solution for basic control and monitoring tasks.
- Small Footprint: 18-pin DIP saves board space and simplifies layout.
- 5V Compatibility: Directly interfaces with standard 5V logic and sensors.
- Low Cost: Minimal features reduce BOM cost for high-volume products.
- Reliable Operation: Includes LVD, POR, and WDT for robust performance.
Small Appliance Control
Compact 18-pin DIP and 5V operation make it perfect for toasters, blenders, and coffee makers.
Sensor Interfacing
With PWM and multiple I/O, it can read analog sensors and drive small actuators in simple control loops.
Automotive Lighting
5V logic and small footprint suit interior light control modules and relay drivers.
Battery Chargers
LVD and PWM enable smart charging algorithms for lead-acid and NiMH batteries.
Security Systems
Reliable 5V operation and WDT support simple alarm panels and door access controllers.
Motor Drivers
PWM outputs can drive small DC motors in toys and pumps with speed control.
- Q: What is the maximum speed?
- A: The PIC18F1230-E/P operates at up to 25MHz.
- Q: What is the program memory size?
- A: It has 4KB (2K x 16) of flash memory.
- Q: What is the supply voltage range?
- A: The supply voltage range is 4.2V to 5.5V.
- Q: What package is available?
- A: It comes in an 18-pin DIP package (0.300" width).
- Q: Does it have LVD?
- A: Yes, it includes Low-Voltage Detect (LVD) for power monitoring.
