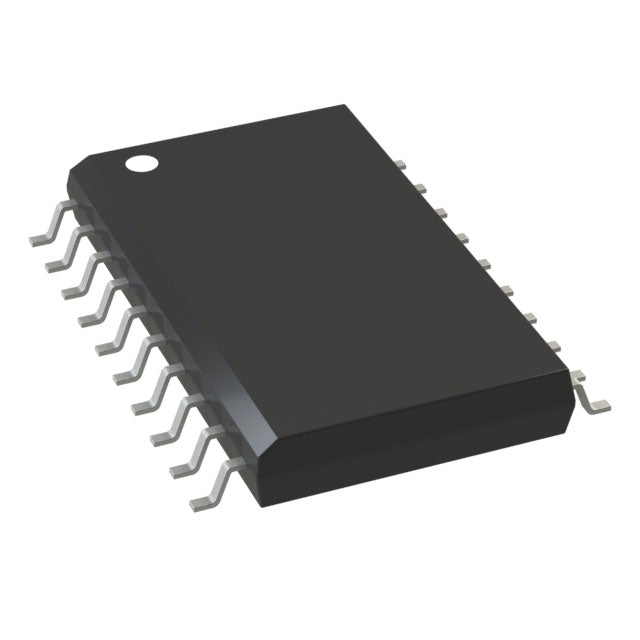

Microchip Technology PIC24F32KA301-E/SO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.32 | $14.32 |
| 15+ | $3.29 | $49.35 |
| 25+ | $3.22 | $80.50 |
| 50+ | $3.04 | $152.00 |
| 100+ | $2.69 | $269.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tube | NULL |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SOIC |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
The Microchip PIC24F32KA301-E/SO is a 16-bit PIC microcontroller delivering 32 MHz performance in a compact 20-pin SOIC package. It features 32KB flash and 2K x 8 RAM, with a wide 1.8V to 3.6V supply range. Integrated peripherals include PWM, brown-out reset, and HLVD, making it a robust choice for power-sensitive embedded designs.
- Ultra-low power consumption: 1.8V operation reduces energy draw in battery devices.
- High reliability: Brown-out reset and watchdog timer prevent system lockups.
- Compact footprint: 20-SOIC saves PCB space for space-constrained designs.
- Extended temperature range: -40°C to +125°C suits harsh environments.
Battery-Powered Sensor Nodes
With a 1.8V minimum supply and multiple low-power modes, this MCU extends battery life in wireless sensor networks.
Portable Medical Devices
The integrated HLVD and brown-out reset ensure reliable operation in glucose meters and pulse oximeters.
Industrial Process Control
Its 32 MHz performance and PWM modules handle real-time control loops in temperature and pressure regulators.
Smart Home Automation
Use it in lighting control and security panels where multiple I/O and communication interfaces are needed.
Automotive Body Electronics
The -40°C to +125°C range makes it suitable for under-hood modules like window lift controllers.
Data Logging Systems
2K x 8 RAM and 32KB flash allow efficient storage of time-stamped sensor data.
- Q: What is the operating voltage range of the PIC24F32KA301-E/SO?
- A: It operates from 1.8V to 3.6V, ideal for low-power battery applications.
- Q: What package is this MCU available in?
- A: It comes in a 20-pin SOIC (0.295", 7.50mm Width) package.
- Q: Does it include an analog-to-digital converter?
- A: Yes, it features a 10-bit ADC with up to 9 channels.
- Q: What is the maximum CPU speed?
- A: It runs at up to 32 MHz.
- Q: Is this suitable for extended temperature environments?
- A: Yes, it is rated for -40°C to +125°C.
