Microchip Technology PIC24F32KA302-E/ML
Normaler Preis
$4.38
Normaler Preis
$4.61
Verkaufspreis
$4.38
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.38 | $4.38 |
| 15+ | $4.24 | $63.60 |
| 25+ | $4.15 | $103.75 |
| 50+ | $3.92 | $196.00 |
| 100+ | $3.46 | $346.00 |
| N+ | $0.69 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tube | |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 13x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-QFN (6x6) |

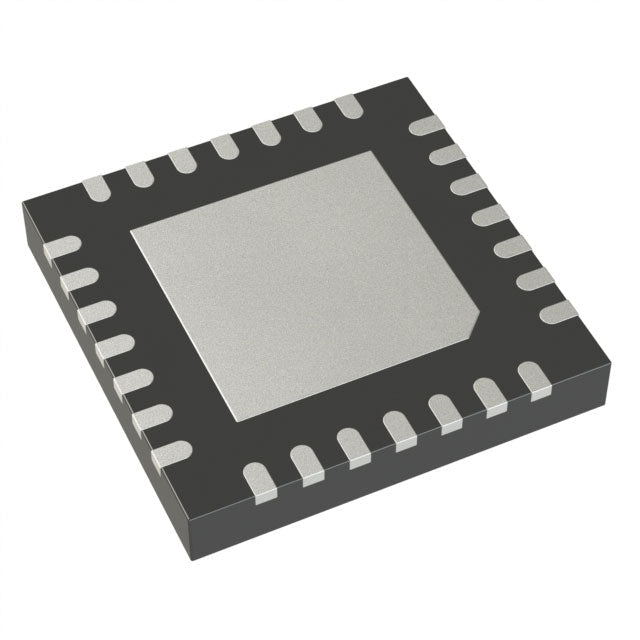

| Package / Case | 28-VQFN Exposed Pad |
| ROHS |  |
The PIC24F32KA302-E/ML from Microchip Technology is a 16-bit PIC microcontroller delivering 32MHz performance with 32KB flash and 2K RAM. Operating from 1.8V to 3.6V, it integrates brown-out detection, HLVD, POR, PWM, and WDT in a compact 28-VQFN package, ideal for power-sensitive embedded designs.
- Ultra-low power: 1.8V operation extends battery life in portable devices.
- High reliability: Brown-out reset and HLVD prevent data corruption.
- Compact footprint: 28-VQFN saves PCB space for miniaturized designs.
- Wide temperature range: -40°C to 125°C supports industrial and automotive use.
Battery-Powered Sensors
With 1.8V operation and low-power modes, it extends battery life in IoT nodes.
Motor Control
Integrated PWM and WDT enable reliable brushless DC motor drivers.
Portable Medical Devices
HLVD and POR ensure safe operation in glucose meters and monitors.
Industrial Automation
Wide temperature range (-40°C to 125°C) suits harsh environments.
Smart Meters
32KB flash and 2K RAM handle metering algorithms efficiently.
Automotive Body Electronics
Qualified for AEC-Q100, ideal for lighting and window control.
- Q: What is the operating voltage range?
- A: 1.8V to 3.6V, suitable for battery-powered applications.
- Q: What package is available?
- A: 28-VQFN Exposed Pad for compact PCB designs.
- Q: Does it include PWM modules?
- A: Yes, it features PWM for motor control and signal generation.
- Q: What is the maximum CPU speed?
- A: 32MHz, balancing performance and power consumption.
Base Product Number ：
PIC24F32KA302
PIC24F32KA302-E/ML.pdf
