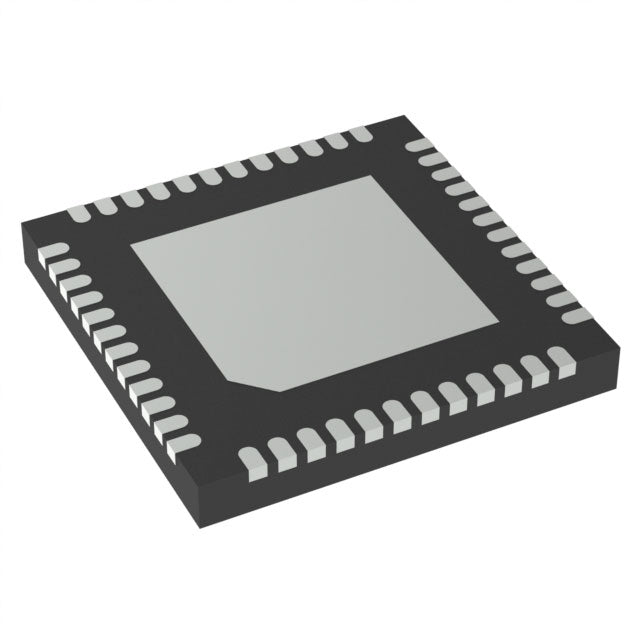

Microchip Technology PIC24F32KA304-I/MV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.43 | $4.43 |
| 15+ | $4.29 | $64.35 |
| 25+ | $4.19 | $104.75 |
| 50+ | $3.96 | $198.00 |
| 100+ | $3.50 | $350.00 |
| N+ | $0.70 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tube | |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 39 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-UQFN (6x6) |
| Package / Case | 48-UFQFN Exposed Pad |
| ROHS |  |
The Microchip PIC24F32KA304-I/MV is a 16-bit microcontroller optimized for low-power and analog-intensive applications. With a 32MHz core, 32KB flash, and 2KB RAM, it delivers efficient processing for control and monitoring tasks. Its 1.8V-3.6V supply range and 48-UFQFN package support compact, battery-powered designs.
- 16-bit PIC core at 32MHz: Provides higher precision and throughput than 8-bit alternatives for complex algorithms.
- Ultra-low power with HLVD: Extends battery life and provides early voltage warning for graceful shutdown.
- Exposed pad package: Improves thermal performance in high-current or high-temperature environments.
- Rich analog peripherals: Includes multiple ADC channels and comparators for direct sensor interfacing.
Battery Management Systems
The 1.8V-3.6V range and HLVD (High/Low Voltage Detect) enable precise monitoring of battery cells in portable devices, with the 32MHz core handling state-of-charge algorithms.
Sensor Fusion Modules
With 32KB flash and multiple PWM channels, it processes accelerometer and gyroscope data for motion tracking in wearables.
Industrial Process Controllers
The robust WDT and brown-out reset ensure fail-safe operation in PLCs and process control, with the exposed pad aiding thermal dissipation.
Smart Agriculture Sensors
Low-power operation and wide temperature range make it suitable for soil moisture and weather monitoring nodes deployed outdoors.
Portable Diagnostic Tools
The 16-bit core with 2KB RAM handles data logging and display control in handheld medical or industrial diagnostic equipment.
Automotive Aftermarket Modules
Operating from 1.8V to 3.6V, it interfaces with vehicle sensors and actuators, with HLVD providing early warning of supply drops.
- Q: What core is used in the PIC24F32KA304?
- A: It uses a 16-bit PIC core running at 32MHz.
- Q: What is the operating voltage range?
- A: It operates from 1.8V to 3.6V.
- Q: How much program memory and RAM does it have?
- A: It has 32KB flash (11K x 24) and 2KB RAM.
- Q: What package is available?
- A: It comes in a 48-UFQFN exposed pad package.
