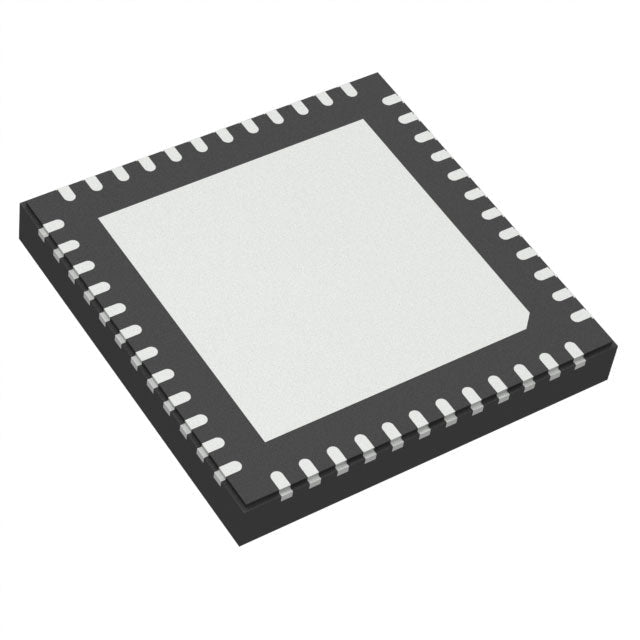

Microchip Technology PIC32CM1216JH01048-I/U5B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 32CM |
| Packaging | | Tray |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 12x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 48-VQFN (7x7) |
| Package / Case | 48-VFQFN Exposed Pad |
| ROHS |  |
The Microchip PIC32CM1216JH01048-I/U5B is a 48MHz ARM Cortex-M0+ microcontroller in a 48-VFQFN package. It offers 128KB flash and 16KB SRAM, operating from 2.7V to 5.5V. With integrated PWM, watchdog, and brown-out reset, it provides a cost-effective solution for consumer and industrial control. The -40°C to 85°C range covers most commercial applications.
- Compact VFQFN-48: High pin density in a small footprint for space-limited PCBs.
- Fast 48MHz processing: Handles complex control algorithms efficiently.
- Wide voltage range: 2.7V to 5.5V offers design flexibility.
- Rich peripherals: PWM, WDT, and POR reduce external components.
Consumer Electronics
The 85°C rating and VFQFN package suit smart home devices and wearables.
Portable Instruments
Low power and 48MHz speed enable handheld multimeters and calibrators.
Motor Control
PWM channels and high-speed ADC support BLDC motor drives in fans and pumps.
IoT Gateways
Process sensor data and manage communication protocols with ample flash.
LED Lighting
PWM outputs drive dimmable LED drivers with precise timing.
Point-of-Sale Terminals
Reliable operation for card readers and keypads in retail environments.
- Q: What is the package for this part?
- A: It is a 48-VFQFN exposed pad package.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 85°C.
- Q: What is the maximum CPU frequency?
- A: It runs at 48MHz.
- Q: What is the supply voltage?
- A: It operates from 2.7V to 5.5V.
- Q: How much flash and RAM does it have?
- A: It has 128KB flash and 16KB SRAM.
