Microchip Technology PIC32MZ2048EFH100-250I/GJX

Zu Produktinformationen springen
1 von 1

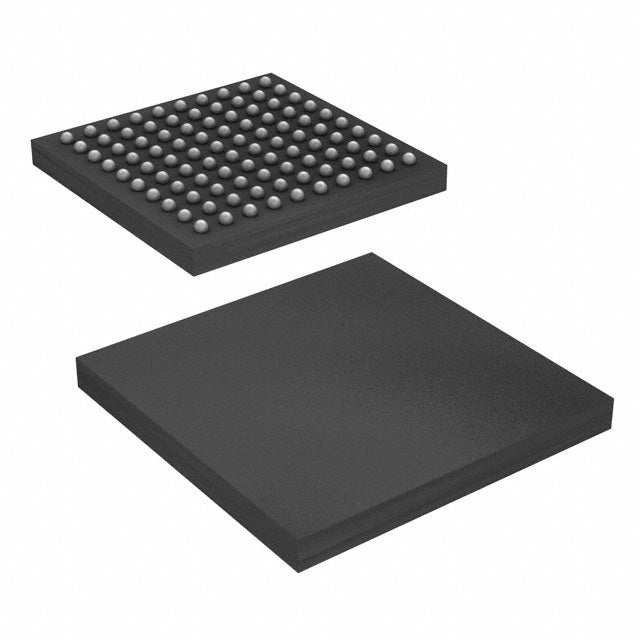

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Normaler Preis $54.00
Normaler Preis $13.50 Verkaufspreis $54.00
Sale Ausverkauft
Quantity Unit Price Total Price
1 $54.00 $54.00
15+ $12.42 $186.30
25+ $12.15 $303.75
50+ $11.48 $574.00
100+ $10.13 $1,013.00
N+ $2.03 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Tray | NULL
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 252MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 78
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 40x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Grade -
Qualification AEC -
Mounting Type Surface Mount
Supplier Device Package 100-TFBGA (7x7)
Package / Case 100-TFBGA
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Microchip PIC32MZ2048EFH100-250I/GJX is a powerful 32-bit MCU featuring a MIPS32 M-Class core at 252MHz. It provides 2MB flash and 512KB RAM, making it suitable for data-intensive applications. With a 2.1V-3.6V supply range and peripherals like DMA, I2S, and PWM, it excels in audio, industrial, and automotive systems.

  • Exceptional Speed: 252MHz M-Class core delivers industry-leading performance for real-time processing.
  • Generous Memory: 2MB flash and 512KB RAM support complex applications and large data sets.
  • Compact Package: 100-TFBGA saves board space while offering high I/O density.
  • Advanced Peripherals: DMA and I2S enable efficient data movement and audio interfacing.

High-End Audio Interfaces

The 252MHz M-Class core and I2S support enable real-time audio effects processing and multi-channel mixing in professional studio equipment.

Advanced Motor Control

With 2MB flash and high-speed PWM, it drives complex multi-axis servo systems in CNC machines and robotics with precise timing.

Networking and Protocol Conversion

Its large RAM and DMA facilitate high-throughput data handling for industrial Ethernet gateways and protocol bridges.

Medical Imaging

The processing power and memory support real-time image processing algorithms in portable ultrasound and endoscopy devices.

Automotive Infotainment

Operating at -40°C to 85°C, it handles graphics rendering and audio/video streaming in vehicle head units and telematics.

Smart Grid and Energy

High-speed ADC and PWM enable precise power conversion and monitoring in solar inverters and smart meters.

Q: What is the core speed of this MCU?
A: It operates at 252MHz, offering high-speed execution for advanced applications.
Q: How much flash memory is available?
A: It has 2MB of flash, providing ample space for large firmware and data storage.
Q: What is the package type?
A: It comes in a 100-TFBGA package, suitable for compact PCB designs.
Q: Does it support DMA and I2S?
A: Yes, it includes DMA, I2S, PWM, and other peripherals for versatile connectivity and control.
Base Product Number : PIC32MZ2048EFH100
100-TFBGA 252MHz 2MB Flash 32-bit MCU 512KB RAM Audio Automotive DMA I2S Industrial MIPS32 M-Class PWM
