Microchip Technology PIC32MZ2048EFH100-E/GJX

Zu Produktinformationen springen
1 von 1

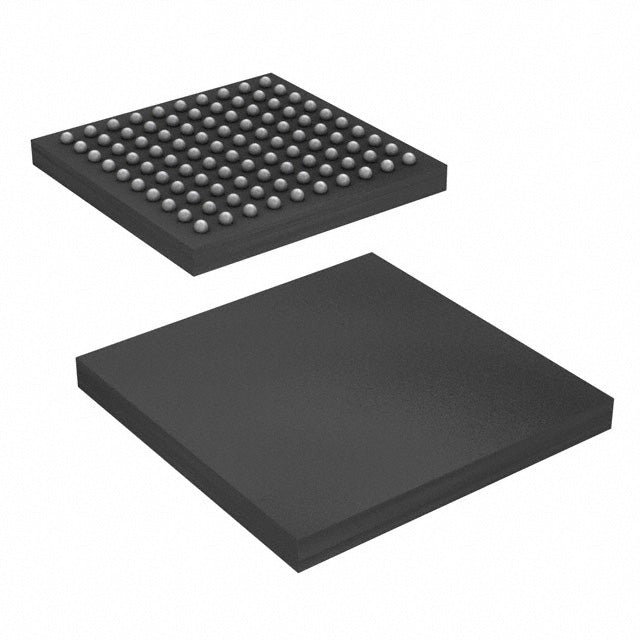

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Normaler Preis $56.40
Normaler Preis $14.10 Verkaufspreis $56.40
Sale Ausverkauft
Quantity Unit Price Total Price
1 $56.40 $56.40
15+ $12.97 $194.55
25+ $12.69 $317.25
50+ $11.99 $599.50
100+ $10.58 $1,058.00
N+ $2.12 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Tray | NULL
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 200MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 78
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 40x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Grade Automotive
Qualification AEC AEC-Q100
Mounting Type Surface Mount
Supplier Device Package 100-TFBGA (7x7)
Package / Case 100-TFBGA
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Microchip PIC32MZ2048EFH100-E/GJX is a high-performance 32-bit microcontroller featuring a 200MHz MIPS32 M-Class core. It offers 2MB of flash and 512KB of RAM, ideal for complex embedded applications. The device includes advanced peripherals such as DMA, I2S, PWM, and comprehensive protection features like Brown-out Detect/Reset, POR, and WDT. Packaged in a 100-TFBGA, it operates from 2.1V to 3.6V and supports -40°C to 125°C, making it suitable for automotive and industrial use.

  • 200MHz MIPS32 core: High throughput for demanding applications.
  • Extended temperature range (-40°C to 125°C): Suitable for automotive and harsh environments.
  • Integrated I2S: Enables direct audio interface without external codec logic.
  • 2MB flash / 512KB RAM: Large memory footprint for complex firmware.

Automotive Engine Control Units

The 125°C rating and 200MHz MIPS core handle real-time engine management algorithms with high reliability.

Industrial Automation with Audio Feedback

The integrated I2S interface enables high-quality audio output for machine status alerts, while PWM controls actuators.

High-End Appliance Control

With 2MB flash, it supports complex user interfaces and connectivity stacks for smart appliances.

Avionics Sensors

Wide temperature range and robust BOR ensure stable operation in extreme flight conditions.

Medical Imaging Devices

High-speed processing and 512KB RAM support real-time image preprocessing in portable ultrasound systems.

Energy Harvesting Systems

Low voltage operation down to 2.1V allows direct battery or supercapacitor power with minimal regulation.

Q: What is the core architecture of this PIC32?
A: It uses a MIPS32 M-Class core running at 200MHz.
Q: What memory does it include?
A: It has 2MB flash and 512KB RAM.
Q: What is the operating temperature range?
A: It operates from -40°C to 125°C, suitable for automotive and high-temp environments.
Q: What package is available?
A: It comes in a 100-TFBGA package.
Q: What special features does it have?
A: It includes Brown-out Detect/Reset, DMA, I2S, POR, PWM, and WDT.
Base Product Number : PIC32MZ2048EFH100
100-TFBGA 200MHz 2MB Flash 32-bit MCU 512KB RAM Automotive I2S Industrial MIPS32 M-Class
Q: What is the core architecture of this PIC32?
A: It uses a MIPS32 M-Class core running at 200MHz.
Q: What memory does it include?
A: It has 2MB flash and 512KB RAM.
Q: What is the operating temperature range?
A: It operates from -40°C to 125°C, suitable for automotive and high-temp environments.
Q: What package is available?
A: It comes in a 100-TFBGA package.
Q: What special features does it have?
A: It includes Brown-out Detect/Reset, DMA, I2S, POR, PWM, and WDT.
