Microchip Technology PIC32MZ2048EFH100-E/PF

Zu Produktinformationen springen
1 von 1

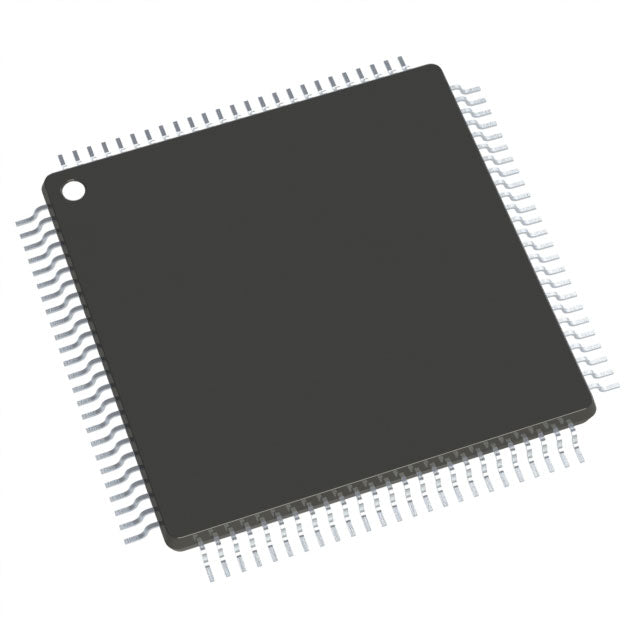

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Normaler Preis $16.77
Normaler Preis $17.65 Verkaufspreis $16.77
Sale Ausverkauft
Quantity Unit Price Total Price
1 $16.77 $16.77
15+ $16.24 $243.60
25+ $15.89 $397.25
50+ $15.00 $750.00
100+ $13.24 $1,324.00
N+ $2.65 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Tray |
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 180MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 78
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 40x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C
Grade Automotive
Qualification AEC AEC-Q100
Mounting Type Surface Mount
Supplier Device Package 100-TQFP (14x14)
Package / Case 100-TQFP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The PIC32MZ2048EFH100 is a high-performance MIPS32 M-Class MCU from Microchip. It operates at 180MHz with 2MB flash and 512KB RAM. Designed for demanding applications, it offers a wide temperature range and rich connectivity.

  • High performance: 180MHz MIPS core delivers fast processing.
  • Large memory: 2MB flash and 512KB RAM for complex applications.
  • Extended temperature: -40°C to 125°C for harsh environments.
  • Rich peripherals: I2S, PWM, and DMA for versatile designs.

Industrial Motor Control

180MHz MIPS core with PWM and I2S supports high-performance FOC algorithms.

Automotive Gateway

125°C rating and 2MB flash handle complex communication protocols.

Medical Imaging

High-speed processing and 512KB RAM enable real-time image processing.

Smart Grid

Robust peripherals and wide voltage range ensure reliable grid monitoring.

Audio Processing

I2S interface and DMA support high-fidelity audio streaming.

Robotics

Multiple PWM channels and fast ADC enable precise servo control.

Q: What core does this MCU use?
A: MIPS32 M-Class.
Q: What is the maximum speed?
A: 180 MHz.
Q: How much flash memory is included?
A: 2 MB.
Q: What is the operating temperature range?
A: -40°C to 125°C.
Base Product Number : PIC32MZ2048EFH100
