Microchip Technology PIC32MZ2048EFH100-E/PT

Zu Produktinformationen springen
1 von 1

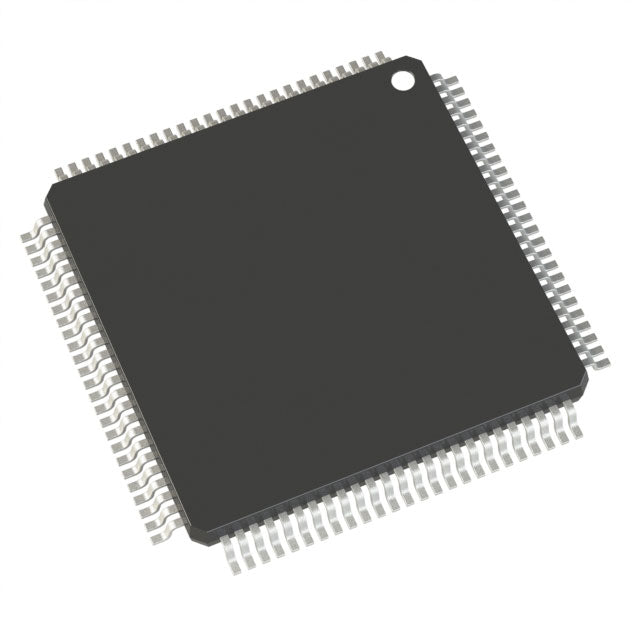

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Normaler Preis $16.15
Normaler Preis $17.00 Verkaufspreis $16.15
Sale Ausverkauft
Quantity Unit Price Total Price
1 $16.15 $16.15
15+ $15.64 $234.60
25+ $15.30 $382.50
50+ $14.45 $722.50
100+ $12.75 $1,275.00
N+ $2.55 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Tray |
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 180MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 78
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 40x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C
Grade Automotive
Qualification AEC AEC-Q100
Mounting Type Surface Mount
Supplier Device Package 100-TQFP (12x12)
Package / Case 100-TQFP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Microchip PIC32MZ2048EFH100-E/PT is a robust 32-bit microcontroller featuring a MIPS32 M-Class core at 180 MHz. It offers 2 MB of flash and 512 KB of RAM, with a supply voltage range of 2.1V to 3.6V. Housed in a 100-TQFP package, it operates from -40°C to 125°C, making it suitable for extreme environments. Integrated DMA, PWM, I2S, and watchdog timer enhance its versatility for demanding industrial and automotive applications.

  • Extended Temperature Range: -40°C to 125°C for harsh conditions.
  • High Performance: 180 MHz MIPS32 core for real-time processing.
  • Large Memory: 2 MB flash and 512 KB RAM for complex code.
  • Peripheral Integration: DMA, PWM, and I2S reduce external components.
  • Reliable Operation: Brown-out reset and watchdog for system integrity.

Automotive Engine Control

The extended temperature range (-40°C to 125°C) and 180 MHz performance make it ideal for engine management units.

Oil and Gas Monitoring

High-temperature tolerance and robust peripherals support downhole sensors and pipeline monitoring systems.

Aerospace Actuators

Reliable operation in extreme conditions and DMA for sensor data handling suit flight control actuators.

Industrial Drives

PWM and high-speed ADC enable precise control of variable frequency drives in harsh factory floors.

Solar Inverters

Wide voltage range and WDT ensure stable operation in outdoor power conversion equipment.

Defense Electronics

MIL-grade temperature range and 2 MB flash support ruggedized communication devices.

Q: What is the maximum speed of the PIC32MZ2048EFH100-E/PT?
A: It operates at 180 MHz, providing solid performance for embedded tasks.
Q: What is the operating temperature range?
A: It is rated for -40°C to 125°C, suitable for extreme environments.
Q: How much flash and RAM does it have?
A: It includes 2 MB flash and 512 KB RAM.
Q: What is the supply voltage?
A: The voltage range is 2.1V to 3.6V.
Q: What package is used?
A: It comes in a 100-TQFP package.
Base Product Number : PIC32MZ2048EFH100
100-TQFP 180MHz 2MB Flash 32-bit MCU 512KB RAM Automotive DMA High-Temp Industrial MIPS32 M-Class
