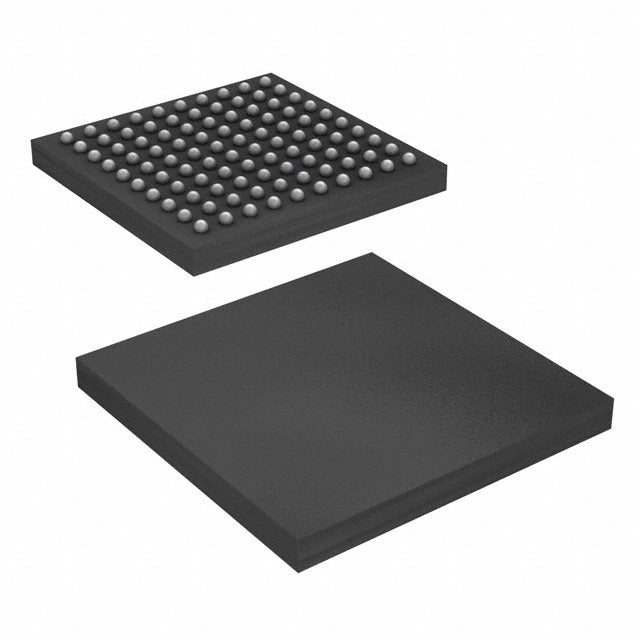

Microchip Technology PIC32MZ2048EFH100-I/GJX
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $51.28 | $51.28 |
| 15+ | $11.79 | $176.85 |
| 25+ | $11.54 | $288.50 |
| 50+ | $10.90 | $545.00 |
| 100+ | $9.62 | $962.00 |
| N+ | $1.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 32MZ |
| Packaging | Tray | NULL |
| Core Processor | MIPS32® M-Class |
| Core Size | 32-Bit Single-Core |
| Speed | 200MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 78 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.1V ~ 3.6V |
| Data Converters | A/D 40x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (7x7) |
| Package / Case | 100-TFBGA |
| ROHS |
The Microchip PIC32MZ2048EFH100-I/GJX is a high-performance 32-bit MCU with a MIPS32 M-Class core running at 200MHz. It provides 2MB of flash and 512KB of RAM, operating from 2.1V to 3.6V. Housed in a compact 100-TFBGA package, it includes DMA, I2S, PWM, and brown-out detection for advanced embedded applications.
- High-Speed Performance: 200MHz MIPS32 core for demanding tasks.
- Large Memory: 2MB flash and 512KB RAM for complex applications.
- Compact Package: 100-TFBGA saves board space.
- Rich Peripherals: I2S, DMA, and PWM support multimedia and control.
High-Speed Audio Processing
The 200MHz core and I2S interface enable high-fidelity audio streaming and effects processing.
Embedded Vision Systems
With 2MB flash and 512KB RAM, it can handle image preprocessing for smart cameras.
Industrial IoT Gateways
Its DMA and PWM features support sensor fusion and real-time data aggregation in edge devices.
Medical Ultrasound Devices
The high-speed processing and large memory facilitate complex signal processing algorithms.
Advanced Robotics
Multiple PWM channels and fast interrupt handling allow precise multi-axis control.
Cryptographic Applications
With integrated security features, it supports secure boot and encrypted communication.
- Q: What is the core architecture of this PIC32?
- A: It uses the MIPS32 M-Class core.
- Q: What is the maximum speed?
- A: It operates at up to 200MHz.
- Q: How much flash and RAM does it have?
- A: It includes 2MB of flash and 512KB of RAM.
- Q: What is the package type?
- A: It is available in a 100-TFBGA package.
- Q: What is the voltage range?
- A: It operates from 2.1V to 3.6V.
- Q: What is the core architecture of this PIC32?
- A: It uses the MIPS32 M-Class core.
- Q: What is the maximum speed?
- A: It operates at up to 200MHz.
- Q: How much flash and RAM does it have?
- A: It includes 2MB of flash and 512KB of RAM.
- Q: What is the package type?
- A: It is available in a 100-TFBGA package.
- Q: What is the voltage range?
- A: It operates from 2.1V to 3.6V.
