Microchip Technology PIC32MZ2048EFH100T-E/GJX

Zu Produktinformationen springen
1 von 1

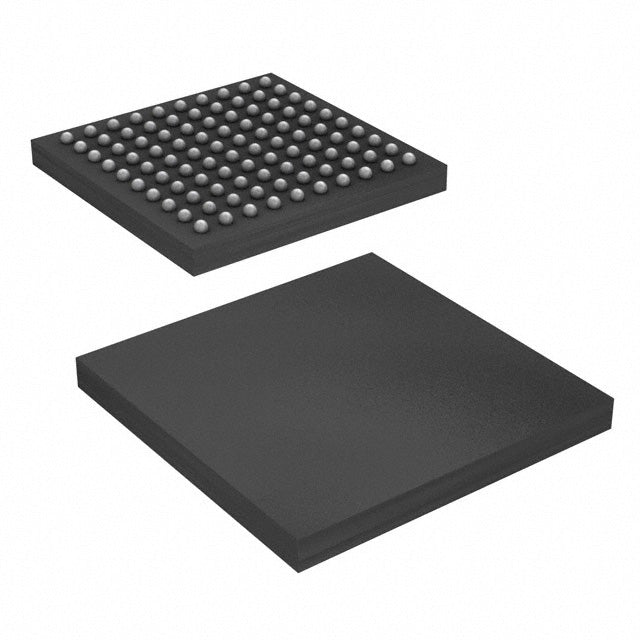

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Normaler Preis $16.17
Normaler Preis $17.02 Verkaufspreis $16.17
Sale Ausverkauft
Quantity Unit Price Total Price
1 $16.17 $16.17
15+ $15.66 $234.90
25+ $15.32 $383.00
50+ $14.47 $723.50
100+ $12.77 $1,277.00
N+ $2.55 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Cut Tape (CT) | NULL
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 200MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 78
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 40x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Grade Automotive
Qualification AEC AEC-Q100
Mounting Type Surface Mount
Supplier Device Package 100-TFBGA (7x7)
Package / Case 100-TFBGA
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The PIC32MZ2048EFH100T-E/GJX from Microchip is a high-performance 32-bit microcontroller featuring a MIPS32 M-Class core at 200 MHz. It provides 2MB flash and 512KB RAM, with peripherals including DMA, I2S, PWM, and brown-out detection. Housed in a 100-TFBGA package, it operates from 2.1V to 3.6V and is suited for audio, industrial, and connectivity applications.

  • Massive memory: 2MB flash and 512KB RAM support complex applications and over-the-air updates.
  • High clock speed: 200MHz MIPS core delivers exceptional compute throughput.
  • Integrated I2S: Direct interface for high-quality audio codecs.
  • Extended temperature: -40°C to 125°C for industrial and automotive environments.

High-End Audio Processing

The 200MHz MIPS core with I2S interface supports multi-channel audio codecs and DSP effects for professional audio equipment.

Industrial HMI

With 2MB flash and 512KB RAM, drive graphical displays and run complex UI frameworks like TouchGFX.

Embedded Vision

Process camera data with the high-speed core and DMA for barcode scanning and simple image recognition.

Connectivity Gateways

Run multiple protocol stacks (Ethernet, USB, CAN) simultaneously with the powerful MIPS core.

Medical Monitoring

Handle real-time signal processing for patient monitors with the wide temperature range and reliable operation.

Test & Measurement

Implement high-speed data acquisition and waveform generation with the 200MHz core and rich peripheral set.

Q: What core does the PIC32MZ2048EFH100 use?
A: It uses a MIPS32 M-Class core.
Q: What is the maximum speed?
A: It operates at up to 200 MHz.
Q: How much flash memory is available?
A: It has 2MB of flash.
Q: What is the operating temperature range?
A: It is rated for -40°C to 125°C.
Q: What package is it available in?
A: It comes in a 100-TFBGA package.
Base Product Number : PIC32MZ2048EFH100
100-TFBGA 200MHz 2MB flash 512KB RAM audio connectivity HMI MIPS32 M-Class PIC32MZ
