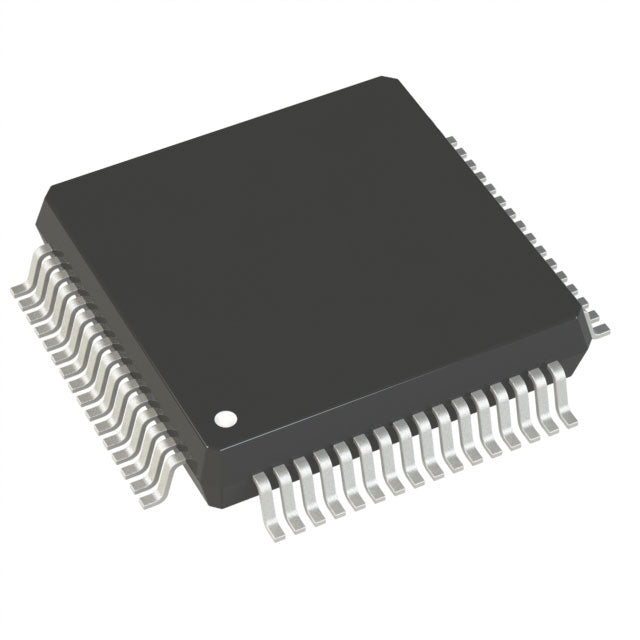

Renesas Electronics Corporation R4F20103NFB#U0
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | H8® H8S/Tiny |
| Packaging | | Tray |
| Core Processor | H8S/2000 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I2C, IrDA, LINbus, SCI, SSU, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 55 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (14x14) |
| Package / Case | 64-LQFP |
| ROHS |  |
Renesas R4F20103NFB#U0 - High-Performance 16-Bit Microcontroller
The Renesas R4F20103NFB#U0 is a premium 16-bit microcontroller from the renowned H8S/Tiny series, engineered for demanding embedded and industrial applications. Featuring a powerful H8S/2000 core running at 20MHz, this microcontroller delivers exceptional performance with 128KB Flash memory and 8KB RAM, making it ideal for complex control systems and data-intensive applications.
Key Features & Benefits:
- Robust Processing Power: 16-bit H8S/2000 core operating at 20MHz for fast, reliable execution
- Generous Memory: 128KB Flash program memory and 8KB RAM for sophisticated firmware
- Comprehensive Connectivity: I2C, IrDA, LINbus, SCI, SSU, and UART/USART interfaces for versatile communication
- Rich Peripheral Set: DMA, LVD, POR, PWM, and WDT for advanced system control
- Flexible I/O: 55 programmable I/O pins for extensive interfacing capabilities
- Wide Voltage Range: 2.7V to 5.5V operation for diverse power supply scenarios
- Integrated Converters: 8-channel 10-bit A/D and 2-channel 8-bit D/A converters
- Industrial Grade: -20°C to 85°C operating temperature range
- Compact Package: 64-LQFP (14x14mm) surface mount package
Why Choose HQICKEY for Your Semiconductor Needs
At HQICKEY, we specialize in providing authentic, high-quality semiconductor components for embedded and industrial electronics applications. Every Renesas microcontroller we supply comes with:
- 100% Authenticity Guarantee: All components are sourced directly from authorized distributors
- Long Lifecycle Support: We maintain inventory for production-scale requirements and long-term availability
- Technical Expertise: Our engineering team provides dedicated support to help you integrate components successfully
- Global Shipping: Reliable worldwide delivery with comprehensive logistics tracking
- Quality Assurance: Rigorous testing and quality control processes ensure component reliability
Applications
The R4F20103NFB#U0 is perfectly suited for:
- Industrial automation and control systems
- Motor control applications
- Building automation and HVAC systems
- Automotive body electronics
- Medical equipment and instrumentation
- Consumer electronics with advanced features
- Communication equipment and IoT devices
