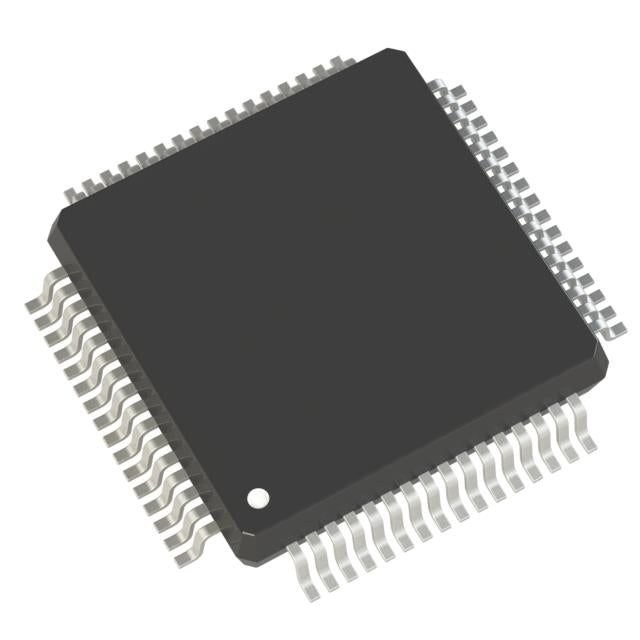

Renesas Electronics Corporation R5F100LEDFB#50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RL78/G13 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.6V ~ 5.5V |
| Data Converters | A/D 12x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LFQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The Renesas R5F100LEDFB#50 is a 16-bit RL78 microcontroller with 64KB flash and 4KB RAM, running at 32MHz. Housed in a 64-LQFP, it operates from 1.6V to 5.5V and integrates DMA, PWM, LVD, POR, and WDT. This MCU balances memory and cost for mid-range embedded applications in industrial and consumer markets.
- Balanced memory: 64KB flash fits moderate firmware with room for updates.
- Low-power operation: 1.6V support extends battery life.
- Peripheral set: DMA and PWM reduce CPU load.
- Environmental resilience: -40°C to 85°C for harsh settings.
- Pin-compatible: 64-LQFP allows easy migration within RL78 family.
Industrial Process Controllers
64KB flash allows PID control loops and data logging, while 4KB RAM handles real-time variables.
Automotive Aftermarket Sensors
Wide voltage tolerance and -40°C to 85°C range suit cabin or engine bay sensors.
Smart Agriculture Devices
PWM outputs drive irrigation valves, and LVD ensures stable operation on solar-charged batteries.
Consumer Robotics
DMA accelerates sensor data transfer, enabling responsive obstacle avoidance in toy robots.
Power Tools
High-speed PWM controls brushless motors, and POR protects against voltage dips during load changes.
Medical Monitoring Accessories
Low power consumption extends battery life in wearable temperature patches.
- Q: How much flash memory does R5F100LEDFB#50 have?
- A: It provides 64KB of flash and 4KB of RAM.
- Q: What is the core speed?
- A: The RL78 core runs at 32MHz.
- Q: What package is this MCU available in?
- A: It comes in a 64-pin LQFP package.
- Q: What are the key integrated peripherals?
- A: It includes DMA, LVD, POR, PWM, and WDT.
- Q: What is the supply voltage range?
- A: It operates from 1.6V to 5.5V.
