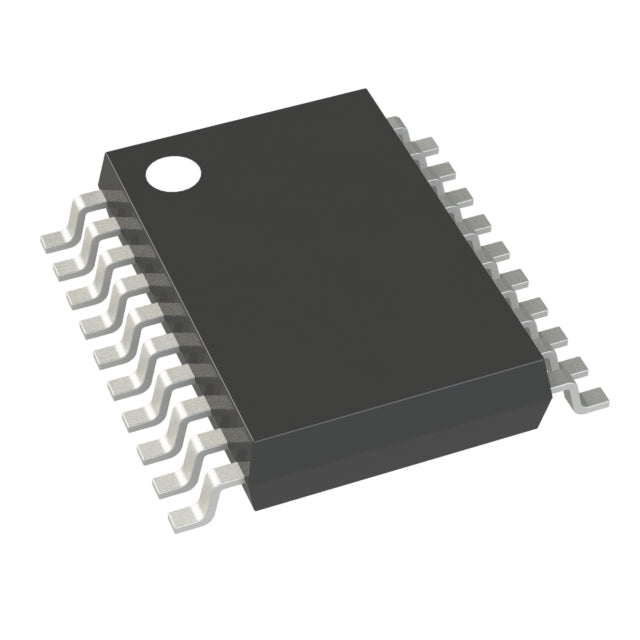

Renesas Electronics Corporation R5F21296JSP#W4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 | Dhs. 355,870.06 |
| 15+ | Dhs. 344,632.06 | Dhs. 5,169,480.90 |
| 25+ | Dhs. 337,140.05 | Dhs. 8,428,501.25 |
| 50+ | Dhs. 318,410.05 | Dhs. 15,920,502.50 |
| 100+ | Dhs. 280,950.05 | Dhs. 28,095,005.00 |
| N+ | Dhs. 56,190.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | R8C/2x/29 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | LED, POR, Voltage Detect, WDT |
| Number of I/O | 13 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LSSOP |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The Renesas R5F21296JSP#W4 is a high-performance 16-bit microcontroller from the renowned R8C/2x/29 series, engineered for demanding embedded applications in industrial automation, automotive systems, and IoT devices. Built on the robust R8C core architecture, this MCU delivers reliable processing at speeds up to 20MHz while maintaining exceptional power efficiency across a wide voltage range of 2.7V to 5.5V.
Key Features & Benefits:
- 32KB Flash Memory: Ample program storage for complex embedded applications with room for future firmware updates and over-the-air (OTA) updates
- Versatile Connectivity: Integrated I2C, LINbus, UART/USART, SIO, and SSU interfaces enable seamless communication with sensors, displays, actuators, and network modules in multi-device systems
- Rich Peripheral Set: Built-in LED driver, Power-On Reset (POR), voltage detection, and watchdog timer (WDT) enhance system reliability and reduce external component count
- Compact 20-LSSOP Package: Surface-mount design (4.40mm width) optimizes PCB space in space-constrained applications while ensuring excellent thermal performance
- Industrial Temperature Range: Operates reliably from -40°C to 85°C, perfect for harsh environments including automotive under-hood, factory floors, and outdoor installations
- RoHS Compliant: Meets environmental standards for global market deployment and regulatory compliance
- Low Power Consumption: Multiple power-saving modes extend battery life in portable and remote sensing applications
- 13 General-Purpose I/O Pins: Flexible GPIO configuration supports diverse peripheral interfacing requirements
Technical Specifications:
Applications & Use Cases:
This microcontroller excels in a wide range of embedded applications including:
- Motor Control Systems: Brushless DC motor control, stepper motor drivers, and servo control with precise PWM generation
- Sensor Networks: Multi-sensor data acquisition systems with I2C and UART communication protocols
- Smart Metering: Energy meters, water meters, and gas meters with secure data logging capabilities
- Building Automation: HVAC controllers, lighting control systems, and access control panels
- Automotive Body Electronics: Dashboard controllers, climate control modules, and door lock systems with LINbus connectivity
- Industrial Control: PLC modules, process controllers, and factory automation equipment
The integrated 10-bit ADC with 4 channels enables precise analog signal processing for temperature sensing, pressure monitoring, and voltage measurement applications. The 2KB EEPROM provides non-volatile data storage for calibration parameters, configuration settings, and user preferences that persist across power cycles.
Development & Programming:
The R5F21296JSP#W4 is supported by Renesas' comprehensive development ecosystem, including the CS+ integrated development environment (IDE), E1/E2/E20 emulators for in-circuit debugging, and extensive code libraries. The Flash memory supports in-system programming (ISP) for easy firmware updates during production and field deployment.
