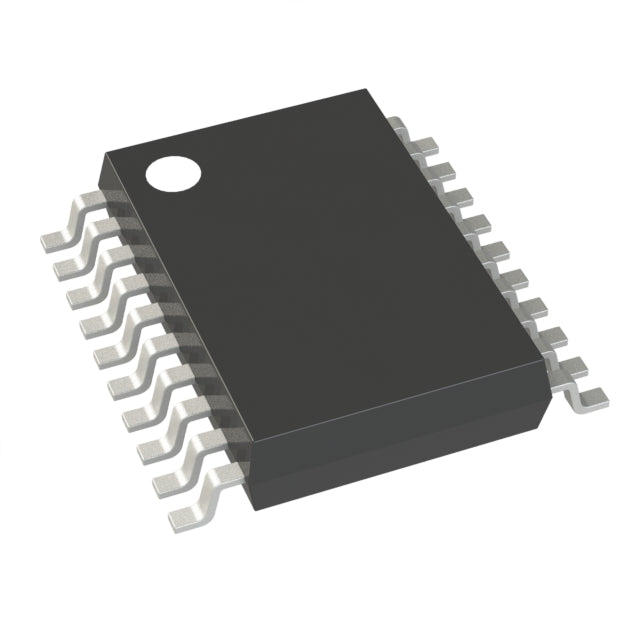

Renesas Electronics Corporation R5F21322CNSP#U0
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | R8C/3x/32C |
| Packaging | | Tube |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 15 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LSSOP |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) |
| ROHS |  |
Renesas R5F21322CNSP#U0 Microcontroller Overview
The R5F21322CNSP#U0 is a high-performance 16-bit microcontroller from Renesas Electronics' R8C/32C series, engineered for embedded, industrial, automotive, and IoT applications. Featuring an R8C core running at 20MHz, this MCU delivers reliable processing power with low power consumption across a wide voltage range of 1.8V to 5.5V.
Key Features & Specifications
Technical Highlights
- Memory Architecture: 8KB Flash program memory, 4KB EEPROM, and 1KB RAM provide ample storage for embedded firmware and data retention
- Rich Connectivity: Integrated I2C, UART/USART, LINbus, SIO, and SSU interfaces enable seamless communication with sensors, displays, and other peripherals
- Analog Capabilities: Four 10-bit ADC channels for precise analog signal acquisition
- Built-in Peripherals: Power-on Reset (POR), PWM, Voltage Detection, and Watchdog Timer (WDT) enhance system reliability and control
- Compact Surface Mount Package: 20-LSSOP form factor (4.40mm width) optimized for space-constrained PCB designs
- Wide Operating Range: Functions reliably from -20°C to 85°C, suitable for industrial and automotive environments
Applications
This microcontroller is ideal for motor control, sensor interfaces, home automation, industrial control systems, automotive body electronics, and battery-powered IoT devices. Its low power consumption and robust peripheral set make it a versatile choice for cost-sensitive embedded designs.
Quality & Authenticity
HQICKEY sources all components directly from authorized distributors, ensuring 100% authentic Renesas products with full traceability and lifecycle support. Every unit is inspected and backed by our quality guarantee.
