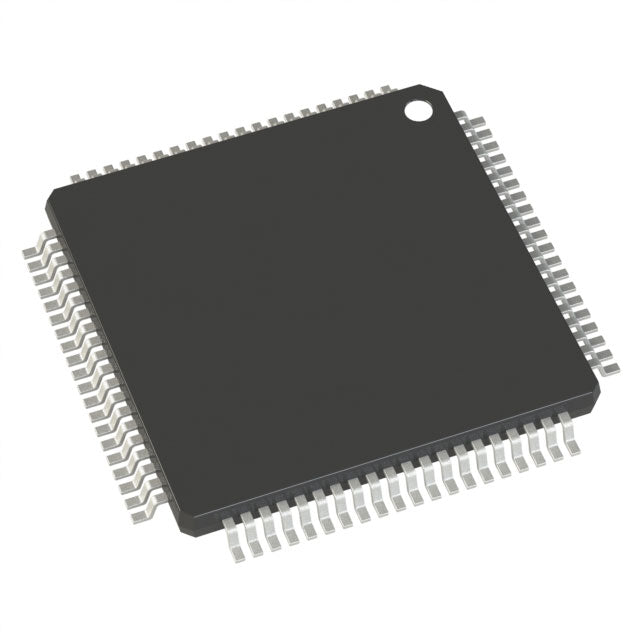

Renesas Electronics Corporation R5F2LA86ANFP#30
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | R8C/Lx/A8A |
| Packaging | | Tray |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | LCD, POR, PWM, Voltage Detect, WDT |
| Number of I/O | 72 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LQFP (12x12) |
| Package / Case | 80-LQFP |
| ROHS |  |
The R5F2LA86ANFP#30 from Renesas is a 16-bit R8C core microcontroller operating at up to 20MHz. It provides 32KB flash and 2KB RAM, with a wide 1.8V to 5.5V supply range. The 80-LQFP package integrates an LCD controller, PWM, voltage detect, and watchdog timer, making it a versatile choice for cost-sensitive embedded control applications.
- Wide voltage range (1.8V-5.5V): Simplifies power design and supports battery operation.
- Integrated LCD driver: Eliminates external display ICs, reducing BOM cost.
- 20MHz R8C core: Efficient 16-bit processing for real-time control tasks.
- On-chip POR, WDT, and voltage detect: Enhances system reliability without extra components.
Battery-Powered Instrumentation
Operates from 1.8V, enabling direct battery connection without complex regulation, extending runtime in portable meters.
Industrial Control Panels
Integrated LCD driver and PWM outputs allow direct display and motor control, reducing external components in HMI panels.
Home Appliance Displays
Voltage detect and WDT ensure reliable operation in appliances, while LCD support simplifies user interface design.
Sensor Monitoring Systems
Multiple analog inputs and 20MHz speed handle real-time sensor data processing with low latency.
Automotive Aftermarket Modules
Wide voltage range (up to 5.5V) and -20°C to 85°C temperature range suit under-dash and engine-adjacent modules.
Portable Medical Devices
Low power consumption and POR ensure safe startup, critical for battery-operated diagnostic tools.
- Q: What is the operating voltage range?
- A: 1.8V to 5.5V, suitable for battery-powered and low-power applications.
- Q: What is the maximum CPU speed?
- A: 20MHz, providing balanced performance for control applications.
- Q: What package is available?
- A: 80-LQFP, ideal for compact PCB designs.
- Q: Does it include an LCD controller?
- A: Yes, it features an integrated LCD driver for direct display interfacing.
