Renesas Electronics Corporation R5F52316AGND#U0
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 | Dhs. 355,870.06 |
| 15+ | Dhs. 344,632.06 | Dhs. 5,169,480.90 |
| 25+ | Dhs. 337,140.05 | Dhs. 8,428,501.25 |
| 50+ | Dhs. 318,410.05 | Dhs. 15,920,502.50 |
| 100+ | Dhs. 280,950.05 | Dhs. 28,095,005.00 |
| N+ | Dhs. 56,190.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RX231 |
| Packaging | | Tray |
| Core Processor | RXv2 |
| Core Size | 32-Bit Single-Core |
| Speed | 54MHz |
| Connectivity | CANbus, I2C, IrDA, SCI, SD/SDIO, SPI, SSI, USB OTG |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 43 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-HWQFN (9x9) |
| Package / Case | 64-WFQFN Exposed Pad |
| ROHS |  |
Product Overview
The R5F52316AGND#U0 is a high-performance 32-bit microcontroller from Renesas Electronics' RX231 series, featuring the advanced RXv2 core architecture. This authentic semiconductor component delivers exceptional processing power at 54MHz, making it ideal for embedded systems requiring robust connectivity and precise control.
Key Features & Benefits
- High-Performance Processing: 32-bit RXv2 single-core architecture running at 54MHz ensures fast and efficient operation for demanding embedded applications
- Generous Memory: 256KB flash program memory, 32KB RAM, and 8KB EEPROM provide ample space for complex firmware and data storage
- Rich Connectivity: Integrated CANbus, USB OTG, I2C, SPI, SD/SDIO, and SSI interfaces enable seamless communication with various peripherals and networks
- Advanced Peripherals: Built-in DMA, PWM, watchdog timer, and power management features (LVD, POR) enhance system reliability and efficiency
- Flexible I/O: 43 general-purpose I/O pins offer extensive interfacing capabilities for sensors, actuators, and displays
- Precision Data Conversion: 12-bit ADC (12 channels) and dual 12-bit DACs enable accurate analog signal processing
- Wide Operating Range: Functions reliably across 1.8V to 5.5V supply voltage and -40°C to 105°C temperature range

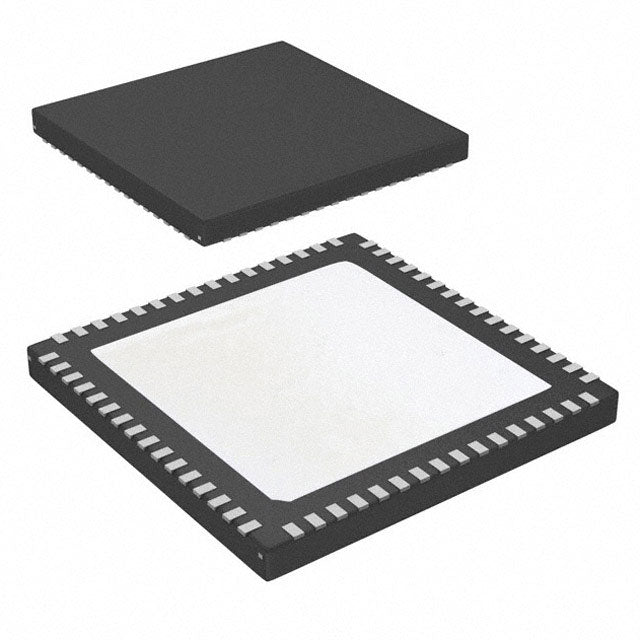

- Compact Surface Mount Package: 64-HWQFN (9x9mm) footprint with exposed pad optimizes board space and thermal performance
- RoHS Compliant: Meets environmental standards for lead-free manufacturing
Typical Applications
This microcontroller is perfectly suited for industrial automation, automotive systems, medical devices, consumer electronics, IoT edge devices, motor control applications, and embedded systems requiring USB connectivity or CANbus communication.
Authentic Components with Global Warranty
At HQICKEY, we guarantee 100% authentic Renesas semiconductors sourced directly from authorized distributors. Every R5F52316AGND#U0 microcontroller comes with full manufacturer warranty support and comprehensive technical documentation. We offer worldwide shipping to support your embedded hardware projects wherever you are.
