Nisshinbo Micro Devices Inc. RP114K181D5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.57 | $1.57 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Product Series | RP114x |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 1.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.39V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 75 μA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | DFN(PL)1010-4 |
| ROHS |  |

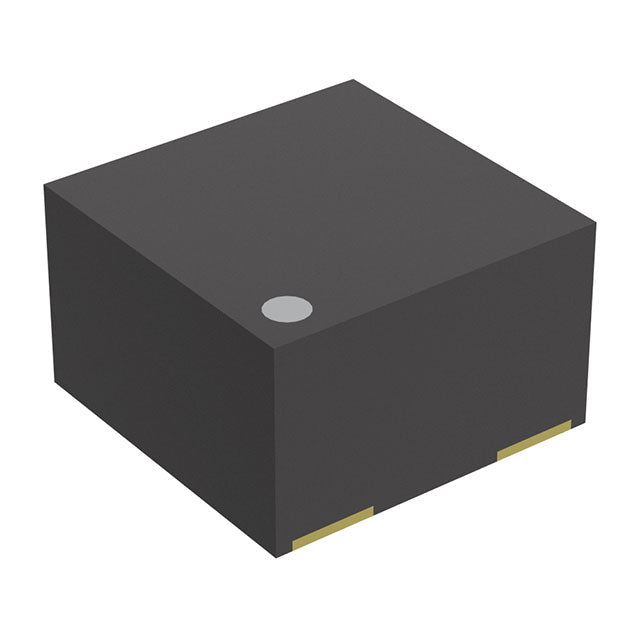

The RP114K181D5-TR is a low dropout linear regulator from Nisshinbo, delivering a fixed 1.85V output with up to 300mA of current. Its ultra-compact DFN(PL)1010-4 package and low 75 μA quiescent current make it ideal for battery-powered and space-constrained designs. With 75dB PSRR at 1kHz, it ensures clean power for noise-sensitive circuits.
- Extended Battery Life: Ultra-low 75 μA quiescent current minimizes standby power consumption in portable devices.
- Clean Power Delivery: 75dB PSRR at 1kHz effectively filters input noise, ensuring stable operation for analog and RF circuits.
- Space-Saving Footprint: The 1.0mm x 1.0mm DFN(PL)1010-4 package is ideal for miniaturized PCB designs.
- High Efficiency at Low Dropout: 0.39V dropout at 300mA allows operation from lower input rails, reducing power dissipation.
Portable Battery-Powered Devices
The low quiescent current of 75 μA extends battery life in wearables, IoT sensors, and handheld instruments where standby power is critical.
Noise-Sensitive Analog Circuits
With 75dB PSRR at 1kHz, this LDO provides clean, stable power for precision analog-to-digital converters, op-amps, and sensor signal conditioning.
Compact PCB Designs
The ultra-small DFN(PL)1010-4 package (1.0mm x 1.0mm) enables dense board layouts in space-constrained applications like earbuds, smart watches, and medical patches.
Microcontroller Power Supply
Delivering a stable 1.85V rail at up to 300mA, it is ideal for low-voltage MCUs and digital logic requiring tight voltage regulation.
Wireless Communication Modules
The high PSRR helps suppress power supply noise that could interfere with RF transceivers, improving signal integrity in Bluetooth and Zigbee modules.
Industrial Sensor Nodes
Its low dropout voltage (0.39V) allows operation from a 2.2V or 2.5V rail, making it suitable for industrial 3.3V to 1.85V conversion with minimal power loss.
- Q: What is the output voltage of the RP114K181D5-TR?
- A: The fixed output voltage is 1.85V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.39V at 300mA output.
- Q: What is the quiescent current?
- A: The quiescent current is 75 μA.
- Q: What package is available?
- A: It comes in a DFN(PL)1010-4 package.
