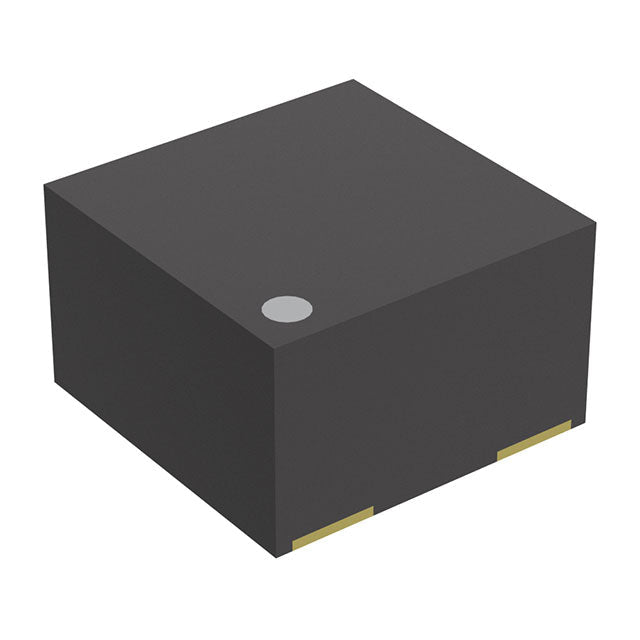

Nisshinbo Micro Devices Inc. RP114K301D-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.57 | $1.57 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Product Series | RP114x |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.29V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 75 μA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | DFN(PL)1010-4 |
| ROHS |  |
The Nisshinbo RP114K301D is a low dropout regulator delivering a fixed 3.0V output at up to 300mA. Featuring a low 0.29V dropout at full load and 75dB PSRR at 1kHz, it provides clean, stable power for digital and analog circuits. The DFN(PL)1010-4 package is ideal for compact, high-density PCB layouts.
- High PSRR: 75dB at 1kHz ensures clean power for sensitive analog and RF circuits.
- Low Dropout: 0.29V at 300mA maximizes efficiency in battery-powered systems.
- Miniature Package: DFN(PL)1010-4 enables ultra-compact designs.
- Stable 3.0V Rail: Ideal for standard 3V logic and mixed-signal applications.
FPGA Core Supplies
3.0V output with 300mA capacity powers low-voltage FPGA cores, while 75dB PSRR prevents logic errors from supply noise.
Portable Gaming Consoles
Stable 3.0V rail for processors and memory, with low dropout extending battery life during intense gaming.
Smart Home Sensors
Compact DFN package and 75 μA quiescent current suit always-on environmental sensors requiring 3.0V logic.
Industrial Sensors
High PSRR ensures accurate analog measurements in factory automation with noisy power lines.
Medical Monitoring Devices
Reliable 3.0V supply for patient monitors and pulse oximeters, with low dropout for battery operation.
Automotive Infotainment
Powers display controllers and audio DSPs with clean 3.0V, reducing electromagnetic interference.
- Q: What is the output voltage?
- A: Fixed 3.0V output.
- Q: What is the maximum current?
- A: 300mA maximum output current.
- Q: What is the input voltage range?
- A: Not specified; typical input is 3.0V.
- Q: What is the dropout voltage?
- A: 0.29V at 300mA load.
- Q: What is the quiescent current?
- A: 75 μA typical.
- Q: What package is available?
- A: DFN(PL)1010-4 package.
