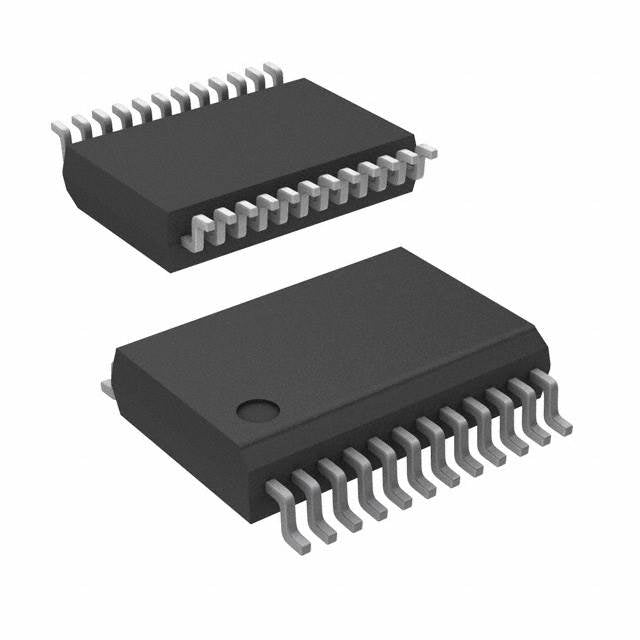

Texas Instruments SN74ABT652ADBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.63 | $1.63 |
| 15+ | $1.58 | $23.70 |
| 25+ | $1.55 | $38.75 |
| 50+ | $1.46 | $73.00 |
| 100+ | $1.29 | $129.00 |
| N+ | $0.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ABT |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SSOP |
| ROHS |  |
The SN74ABT652ADBR is a non-inverting transceiver from Texas Instruments, part of the 74ABT logic family. It features a single channel with 3-State outputs for bidirectional data flow. Operating from 4.5V to 5.5V, it delivers 64mA sink and 32mA source current, making it suitable for high-drive applications. The 24-pin SSOP package is compact for space-limited designs. This transceiver is ideal for 5V bus interfacing, memory buffering, and industrial control systems.
- High Sink Current (64mA): Drives heavy loads and long bus lines.
- Bidirectional Operation: Saves board space by combining two buffers.
- 3-State Outputs: Facilitates bus sharing and reduces power.
- Wide Temperature Range (-40°C to 85°C): Suitable for industrial environments.
High-Speed 5V Bus Transceiver
Use the SN74ABT652ADBR for bidirectional data transfer in 5V systems requiring high speed and high drive current (64mA sink).
Memory Data Bus Interface
Connect a high-speed processor to SRAM or DRAM, providing robust signal buffering and direction control.
Backplane Data Routing
In telecom or industrial backplanes, this transceiver buffers signals between line cards, handling high capacitive loads.
Peripheral Bus Isolation
Isolate the main CPU bus from peripherals using the 3-State outputs, allowing multiple devices to share the bus.
Automotive ECU Communication
In automotive electronic control units, buffer CAN or SPI signals between the microcontroller and transceivers.
Industrial Control Systems
Use it in PLCs or motor controllers to buffer control signals between logic and power stages.
- Q: What is the logic family of the SN74ABT652ADBR?
- A: It is from the 74ABT family, offering high-speed BiCMOS performance.
- Q: What is the function of this IC?
- A: It is a single-channel non-inverting transceiver with 3-State outputs.
- Q: What is the voltage range?
- A: It operates from 4.5V to 5.5V, suitable for 5V systems.
- Q: What is the output current?
- A: It can sink 64mA and source 32mA.
- Q: What package is available?
- A: It comes in a 24-pin SSOP (0.209", 5.30mm width) package.
- Q: What is the temperature range?
- A: It operates from -40°C to 85°C.
