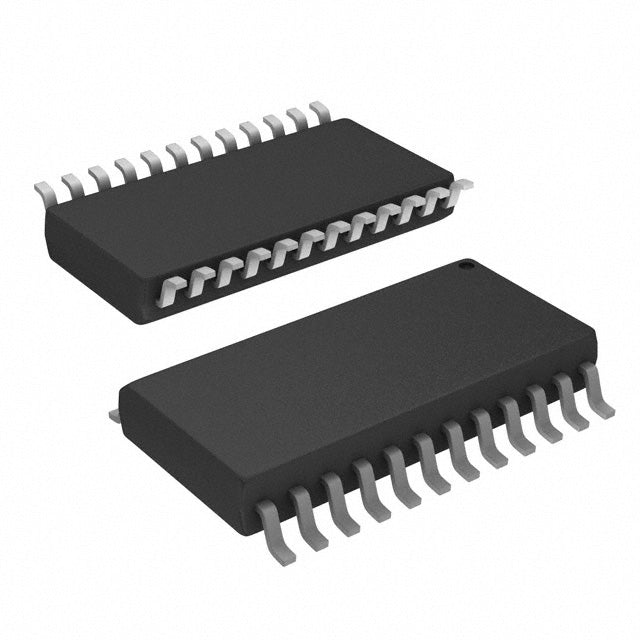

Texas Instruments SN74ABT652ADW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.77 | $1.77 |
| 15+ | $1.71 | $25.65 |
| 25+ | $1.67 | $41.75 |
| 50+ | $1.58 | $79.00 |
| 100+ | $1.40 | $140.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ABT |
| Packaging | Marketplace | Tube |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The SN74ABT652ADW is a high-performance non-inverting transceiver from Texas Instruments, part of the 74ABT BiCMOS family. It operates at 5V (4.5V-5.5V) and features 3-state outputs for bus-oriented applications. With a sink current of 64mA and source of 32mA, it can drive heavy loads. This 8-bit transceiver is ideal for 5V backplane driving, processor interfacing, and industrial control systems.
- High Drive Current (64mA Sink): Drives heavy 5V buses without additional buffers.
- BiCMOS Technology: Combines CMOS low power with bipolar high speed.
- 5V Operation: Compatible with legacy 5V systems, simplifying upgrades.
- 3-State Outputs: Enables safe bus sharing in multi-device systems.
- Wide Temperature Range (-40°C to 85°C): Suitable for industrial environments.
5V Backplane Drivers
In legacy telecom systems, the SN74ABT652ADW drives 5V backplanes with its high 64mA sink current, ensuring signal integrity.
Processor-to-Peripheral Interfacing
It connects 5V microprocessors to memory and I/O devices, providing bidirectional data flow with 3-state control.
Industrial Control Buses
In PLCs and robotics, this transceiver buffers 5V control signals, withstanding industrial noise and temperature variations.
Data Acquisition Systems
Its high drive current allows it to drive multiple ADC/DAC inputs, simplifying fan-out in measurement systems.
Test and Measurement Equipment
In benchtop instruments, it routes 5V logic signals between modules, with 3-state outputs for multiplexing.
Automotive Infotainment
For 5V automotive audio/video systems, it provides reliable data buffering in harsh environments.
- Q: What logic family is the SN74ABT652ADW?
- A: It belongs to the 74ABT family, which is BiCMOS for high speed and drive.
- Q: What is the function of this IC?
- A: It is a non-inverting transceiver with 3-state outputs, designed for bidirectional bus communication.
- Q: How many channels does it have?
- A: It has 1 channel (8-bit) for data transmission.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for high-impedance states.
- Q: What is the voltage range?
- A: It operates from 4.5V to 5.5V, standard for 5V logic systems.
- Q: What package is available?
- A: It comes in a 24-SOIC package (0.295", 7.50mm Width).
