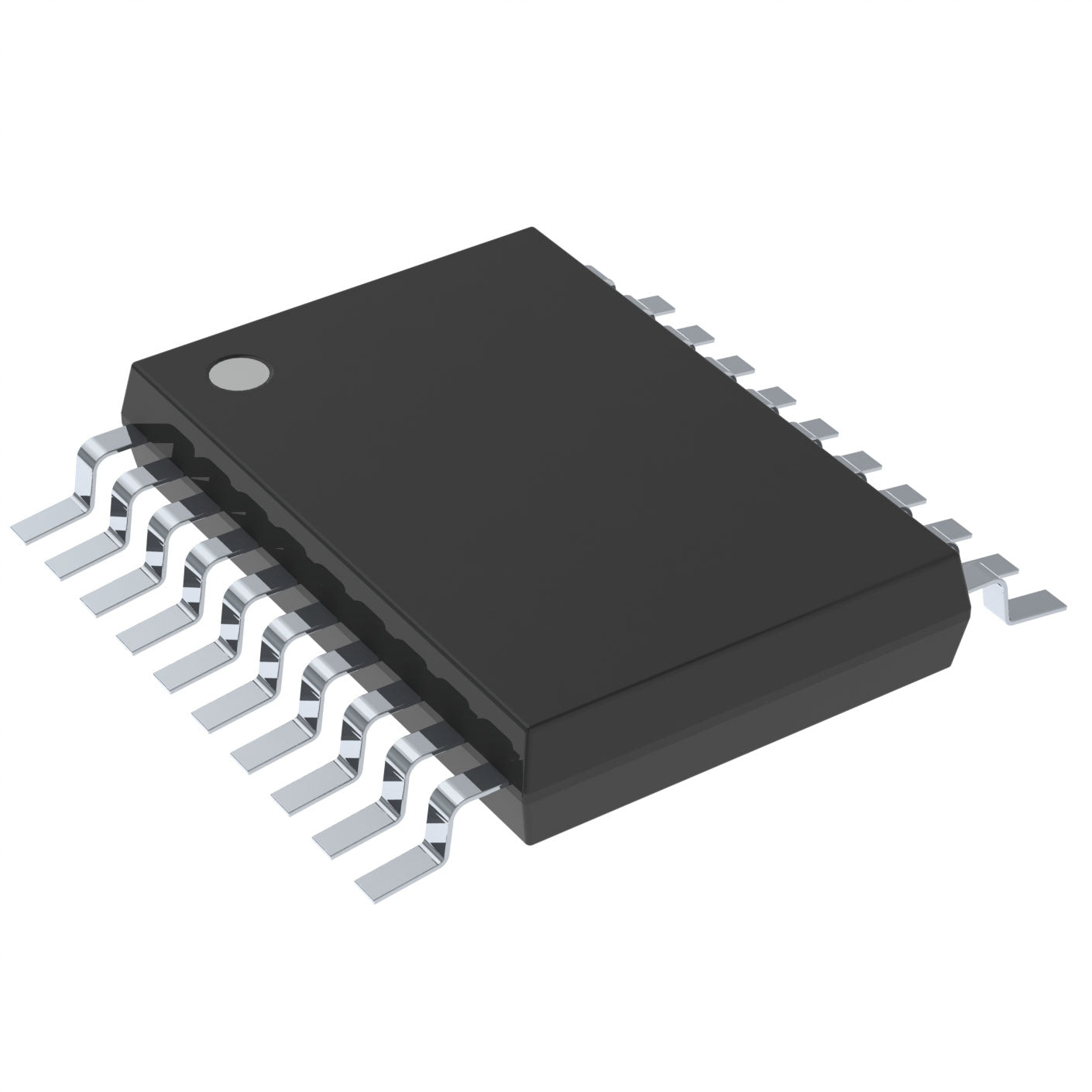

Texas Instruments SN74ABT652ADWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.50 | $1.50 |
| 15+ | $1.45 | $21.75 |
| 25+ | $1.42 | $35.50 |
| 50+ | $1.34 | $67.00 |
| 100+ | $1.19 | $119.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ABT |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| ROHS |  |
The SN74ABT652ADWR is a non-inverting transceiver from Texas Instruments' 74ABT family. It operates at 4.5V to 5.5V and features 3-State outputs with 32mA sink and 64mA source current. This 1-channel (8-bit) transceiver enables bidirectional data transfer between two buses. Housed in a 24-SOIC package, it is ideal for 5V systems requiring bus isolation and high-speed data flow. Applications include microprocessor bus interfacing, memory isolation, and industrial I/O.
- Bidirectional Data Flow: Simplifies bus design by allowing data transfer in both directions with a single IC.
- High Drive Current (32mA/64mA): Drives long buses and multiple loads without signal degradation.
- 3-State Outputs: Provides bus isolation and prevents contention in shared-bus architectures.
- 5V Operation: Directly compatible with legacy 5V logic systems.
Bidirectional Bus Transceiving
Connect two 8-bit data buses in microprocessor systems, allowing data transfer in both directions with direction pin control.
Memory Data Bus Isolation
Isolate the memory data bus from the CPU during write operations, preventing bus contention and improving system reliability.
Peripheral Interface
Drive and receive data from peripherals like LCD modules or sensors, using the 32mA/64mA drive capability for reliable communication.
Industrial Control I/O
In PLCs and industrial controllers, the transceiver handles bidirectional communication with field devices, with 3-State for safe disconnection.
Telecom Line Cards
Manage data flow between line interface units and switching fabrics, ensuring clean signal transfer at 5V levels.
Backplane Data Transfer
In rack-mounted systems, the transceiver enables reliable data transfer between backplane slots with 3-State isolation.
- Q: What logic family is the SN74ABT652ADWR?
- A: It is from the 74ABT family, offering high-speed BiCMOS performance.
- Q: What is the function of this IC?
- A: It is a non-inverting transceiver with 3-State outputs, allowing bidirectional data transfer.
- Q: How many channels does it have?
- A: It has 1 channel (8-bit wide) with direction and enable controls.
- Q: What is the output type?
- A: 3-State outputs provide high-impedance mode for bus isolation.
- Q: What is the voltage range?
- A: It operates from 4.5V to 5.5V, suitable for 5V systems.
- Q: What package is available?
- A: It comes in a 24-SOIC (0.295", 7.50mm Width) package.
