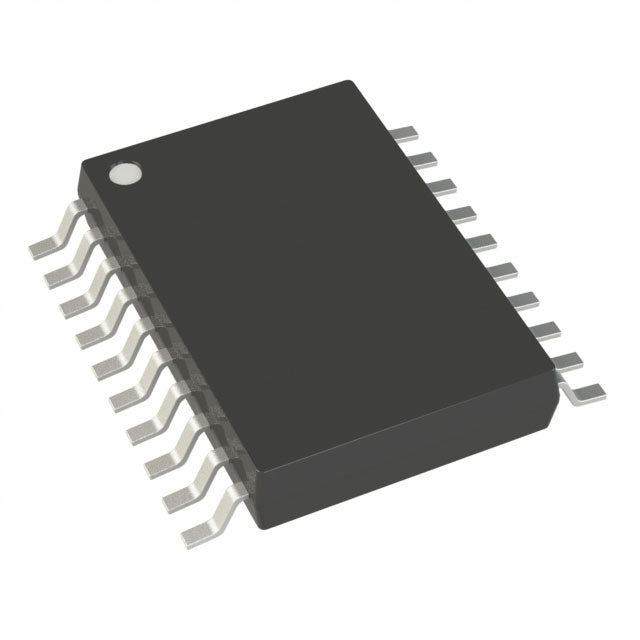

Texas Instruments SN74AC541QDGSRQ1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.59 | $0.59 |
| 15+ | $0.57 | $8.55 |
| 25+ | $0.56 | $14.00 |
| 50+ | $0.53 | $26.50 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74AC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.5V ~ 6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 20-TFSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 20-VSSOP |
| ROHS |  |
The SN74AC541QDGSRQ1 from Texas Instruments is a non-inverting buffer with 3-state outputs, part of the 74AC high-speed family. It operates from 1.5V to 6V and can source or sink 24mA, making it suitable for driving heavy loads. This automotive-grade (Q1) device is qualified for -40°C to 125°C, ideal for under-hood and industrial applications. The 20-TFSOP package offers a compact footprint for dense PCB layouts.
- Automotive Grade (Q1): Qualified for harsh environments with -40°C to 125°C operation.
- High 24mA Drive: Can drive long traces, multiple loads, or LEDs directly.
- Wide 1.5V to 6V Supply: Flexible for various logic levels, reducing design complexity.
- 3-State Outputs: Allows bus sharing and prevents data contention.
Automotive Body Control Modules
Designed for -40°C to 125°C, it buffers control signals in door lock, lighting, and window lift modules, ensuring reliable operation in extreme temperatures.
Industrial PLC I/O Cards
Drive multiple input/output lines in programmable logic controllers, with 3-state outputs to isolate sections during diagnostics.
Memory Address/Data Bus Buffering
Buffer address or data lines between a CPU and memory in embedded systems, providing high drive current (24mA) for long traces.
Level Shifting in Mixed-Voltage Systems
With 1.5V to 6V supply, it can interface between 1.8V, 2.5V, 3.3V, and 5V logic domains without external translators.
Server and Telecom Backplane Drivers
Drive high-capacitance backplane traces in networking equipment, maintaining signal integrity at high speeds.
Test and Measurement Equipment
Buffer trigger signals and control lines in oscilloscopes or data acquisition systems, providing clean, strong outputs.
- Q: What is the logic family of the SN74AC541QDGSRQ1?
- A: It is from the 74AC family, operating from 1.5V to 6V.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 3-state outputs.
- Q: How many channels does it have?
- A: It has 1 channel (octal buffer, but listed as 1 channel in data).
- Q: What is the output type?
- A: 3-State output for bus-oriented applications.
- Q: What is the voltage range?
- A: 1.5V to 6V, covering both 3.3V and 5V systems.
- Q: What package is available?
- A: 20-TFSOP (0.118", 3.00mm Width).
