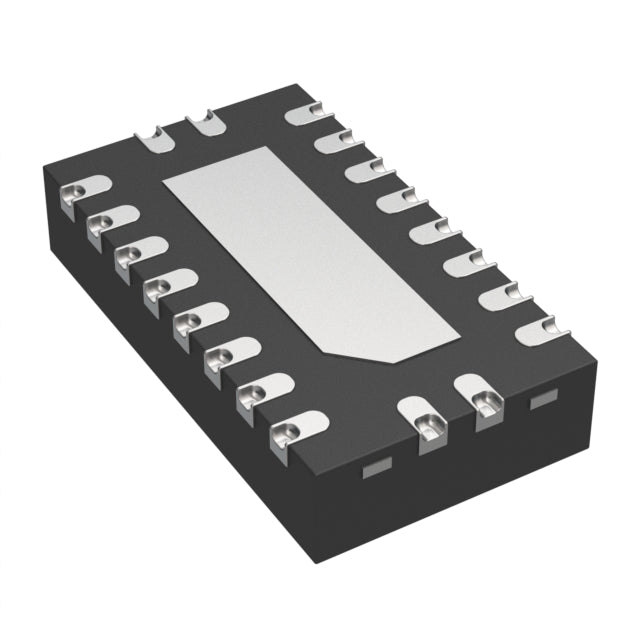

Texas Instruments SN74AC541QWRKSRQ1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.59 | $0.59 |
| 15+ | $0.57 | $8.55 |
| 25+ | $0.56 | $14.00 |
| 50+ | $0.53 | $26.50 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74AC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.5V ~ 6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (2.5x4.5) |
| ROHS |  |
The SN74AC541QWRKSRQ1 from Texas Instruments is a non-inverting buffer with 3-state outputs, part of the 74AC family. It operates from 1.5V to 6V and provides 24mA output drive, suitable for demanding applications. This automotive-grade device is qualified for -40°C to 125°C, making it robust for automotive and industrial use. The 20-VFQFN package with exposed pad enhances thermal performance, ideal for power-dense designs.
- Exposed Pad VFQFN Package: Improves heat dissipation for reliable operation in high-temperature environments.
- Automotive Grade (Q1): Meets AEC-Q100 standards for automotive reliability.
- High 24mA Output: Drives heavy loads and long transmission lines.
- Wide 1.5V to 6V Range: Compatible with 1.8V, 2.5V, 3.3V, and 5V logic.
Automotive Infotainment Systems
Buffer data and control lines in car radios or navigation units, with automotive temperature rating for cabin and dashboard environments.
Industrial Motor Control
Drive PWM signals to motor drivers in factory automation, ensuring clean, high-current signals for precise speed control.
Power Supply Sequencing
Buffer enable signals for multiple DC-DC converters, using 3-state outputs to control power-up sequences safely.
FPGA and ASIC Interface
Connect high-speed FPGAs to peripheral devices, providing 24mA drive for reliable signal transmission over PCB traces.
Telecom Line Cards
Buffer control and data lines in base stations, with VFQFN package for improved heat dissipation in high-density boards.
Medical Device Control
Drive actuators and sensors in patient monitoring equipment, ensuring reliable operation in critical applications.
- Q: What is the logic family of the SN74AC541QWRKSRQ1?
- A: It is from the 74AC family, operating from 1.5V to 6V.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 3-state outputs.
- Q: How many channels does it have?
- A: It has 1 channel (octal buffer, but listed as 1 channel in data).
- Q: What is the output type?
- A: 3-State output for bus isolation.
- Q: What is the voltage range?
- A: 1.5V to 6V, supporting multiple logic levels.
- Q: What package is available?
- A: 20-VFQFN Exposed Pad, offering better thermal performance.
