Texas Instruments SN74AC541RKSR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.50 | $0.50 |
| 15+ | $0.49 | $7.35 |
| 25+ | $0.48 | $12.00 |
| 50+ | $0.45 | $22.50 |
| 100+ | $0.40 | $40.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74AC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.5V ~ 6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |

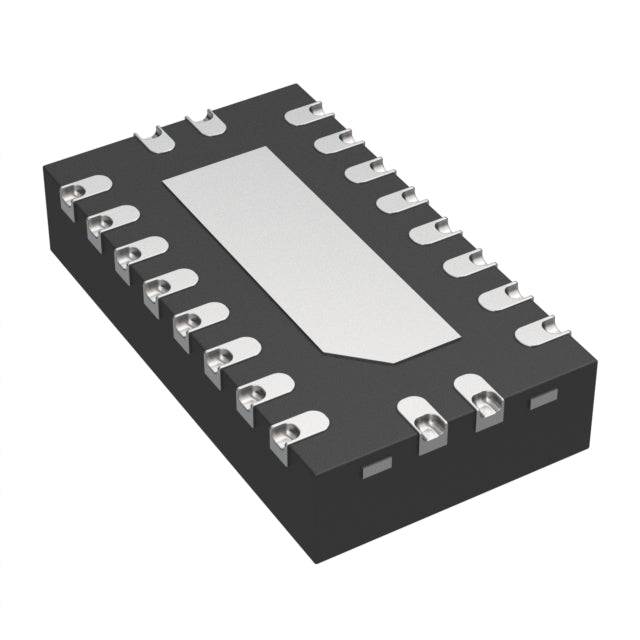

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (2.5x4.5) |
| ROHS |  |
The SN74AC541RKSR is a single-channel, non-inverting buffer from Texas Instruments' 74AC logic family. It features a 3-State output and operates from 1.5V to 6V, providing flexibility across different logic levels. With 24mA output drive, it ensures robust signal transmission. The 20-VFQFN package is ideal for space-constrained applications requiring high-performance buffering.
- Wide Operating Range (1.5V-6V): Compatible with multiple logic standards, reducing design complexity.
- 24mA Output Drive: Ensures reliable driving of capacitive loads and long traces.
- 3-State Output: Provides bus isolation and reduces power when disabled.
- Small VFQFN Package: Ideal for miniaturized electronic devices.
General-Purpose Signal Buffering
The SN74AC541RKSR is perfect for buffering signals between different sections of a PCB. Its 24mA drive capability ensures signal integrity across the board.
Bus Isolation and Multiplexing
Use the 3-State output to isolate a subsystem from the main bus. This is essential in multi-board systems where multiple devices share the same data lines.
Level Translation (1.8V to 5V)
With a 1.5V to 6V supply, this buffer can translate signals between low-voltage FPGAs and 5V peripherals, simplifying mixed-voltage designs.
Driving High-Speed Digital Lines
In high-speed digital systems, this buffer can drive transmission lines with controlled impedance. The 24mA output current maintains fast rise and fall times.
Power Supply Sequencing
In systems with multiple power rails, this buffer can be used to control enable signals. The 3-State output allows for safe power-up and power-down sequencing.
Consumer Electronics Interfaces
For consumer devices like set-top boxes or gaming consoles, this buffer provides reliable signal conditioning for internal data buses.
- Q: What logic family is the SN74AC541RKSR?
- A: It is from the 74AC family, offering high-speed CMOS performance with low power consumption.
- Q: What is the function of this device?
- A: It is a single-channel, non-inverting buffer with 3-State output, used for signal buffering and line driving.
- Q: How many channels does it have?
- A: It has 1 channel, providing a dedicated buffer for a single signal path.
- Q: What is the output type?
- A: The output is 3-State, allowing the output to be set to high, low, or high-impedance.
- Q: What voltage range does it support?
- A: It operates from 1.5V to 6V, making it versatile for various logic levels.
- Q: What package is this variant?
- A: It is available in a 20-VFQFN Exposed Pad package, suitable for compact PCB designs.
