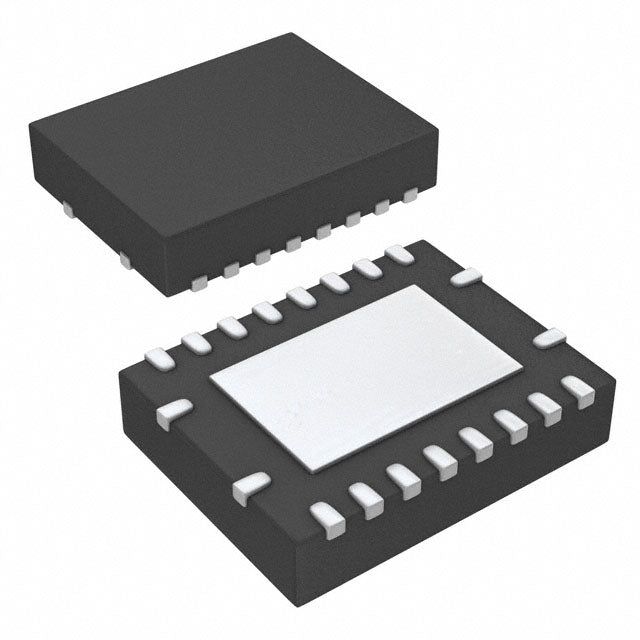

Texas Instruments SN74ALVC245RGYR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.46 | $0.46 |
| 15+ | $0.44 | $6.60 |
| 25+ | $0.43 | $10.75 |
| 50+ | $0.41 | $20.50 |
| 100+ | $0.36 | $36.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74ALVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) |
| ROHS |  |
The SN74ALVC245RGYR is an octal non-inverting transceiver from Texas Instruments, designed for high-speed, low-voltage bus communication. It features 3-state outputs and operates from 1.65V to 3.6V, making it ideal for modern digital systems. With a high output current of 24mA, it can drive demanding loads. The device is housed in a compact 20-VFQFN package with an exposed pad for improved thermal performance. It is suitable for a wide range of applications, from memory interfacing to telecommunications.
- High Output Current (24mA): Provides excellent drive strength for high-capacitance loads and long traces.
- Wide Low-Voltage Range (1.65V to 3.6V): Compatible with 1.8V, 2.5V, and 3.3V logic, offering design flexibility.
- High-Speed Operation: The 74ALVC family is optimized for low propagation delay, supporting high-frequency signals.
- Compact VFQFN Package: Saves board space and includes an exposed pad for better heat dissipation.
High-Speed Data Bus Interfacing
In modern digital systems, the 74ALVC family's low propagation delay ensures high-speed data transfer. This transceiver is ideal for connecting high-performance microprocessors to memory or peripherals.
Level Shifting in Mixed-Voltage Systems
With a supply range of 1.65V to 3.6V, it can interface between 1.8V, 2.5V, and 3.3V logic domains, simplifying mixed-voltage PCB designs.
Driving High-Capacitance Loads
The 24mA output current can drive long PCB traces and high-capacitance loads, maintaining signal integrity in complex layouts.
Memory Interface Buffering
It can buffer the address and data lines between a memory controller and DRAM or SRAM, ensuring reliable read/write operations.
Telecommunications and Networking
In networking equipment, this transceiver can handle high-speed control and data signals, providing the necessary drive strength and noise immunity.
FPGA and CPLD Interfacing
It can be used to buffer signals between an FPGA and other system components, ensuring clean and strong signal levels.
- Q: What is the logic family of the SN74ALVC245RGYR?
- A: It belongs to the 74ALVC family, which is a low-voltage, high-speed CMOS logic series.
- Q: What is the function and number of channels?
- A: It is an octal (8-bit) non-inverting transceiver with 3-state outputs.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V, ideal for low-voltage systems.
- Q: What is the output type?
- A: The outputs are 3-State, allowing for bidirectional bus communication.
- Q: What is the package type?
- A: It comes in a 20-VFQFN Exposed Pad package.
- Q: What is the output current capability?
- A: It can source and sink 24mA of current.
