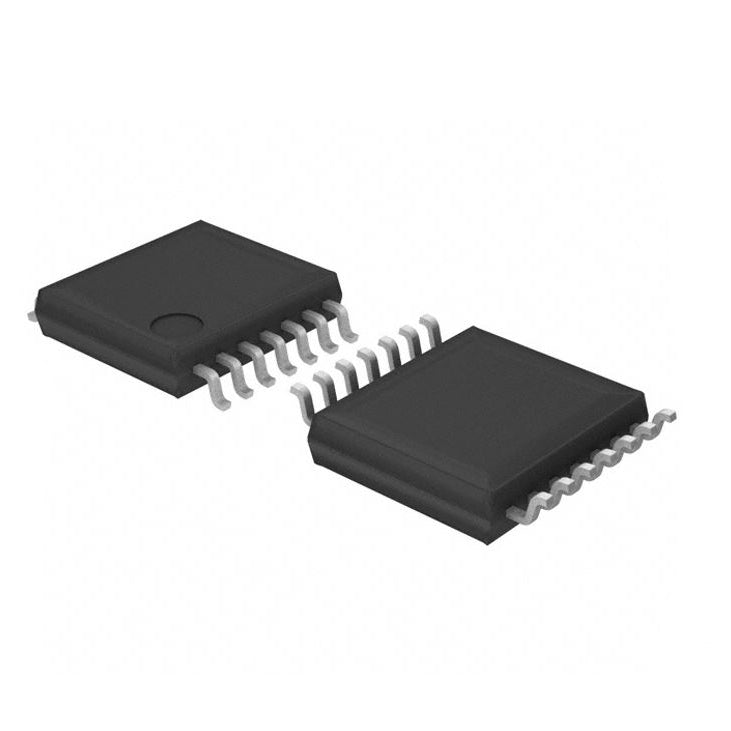

Texas Instruments SN74LV125ATDBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.50 | $0.50 |
| 15+ | $0.49 | $7.35 |
| 25+ | $0.48 | $12.00 |
| 50+ | $0.45 | $22.50 |
| 100+ | $0.40 | $40.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LV |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 16mA, 16mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SSOP |
| ROHS |  |
The SN74LV125ATDBR is a quad non-inverting buffer from Texas Instruments, part of the 74LV logic family. It provides four channels with 3-State outputs, capable of sourcing and sinking 16mA. Operating from 4.5V to 5.5V, it is designed for 5V systems requiring high drive strength. This buffer is ideal for memory interfacing, bus buffering, and driving peripherals in industrial and telecom applications. Its 14-SSOP package offers a compact footprint.
- High 16mA Output Drive: Ensures reliable signal transmission on heavily loaded buses.
- 3-State Outputs: Allows for bus sharing and isolation in multi-device systems.
- 5V Operation: Compatible with standard 5V logic and power supplies.
- Quad Channel Design: Provides four buffers in a single package, reducing component count.
High-Drive 5V Bus Buffering
With 16mA output drive, the SN74LV125ATDBR can handle heavily loaded 5V buses, ensuring signal integrity in complex systems.
Memory Interface
It can buffer address and data lines to memory devices, providing the necessary drive strength for reliable read/write operations.
Peripheral Expansion
This buffer can interface a microcontroller to multiple peripherals, isolating the MCU from capacitive loads.
Industrial Control Systems
Its robust 5V operation and high drive make it suitable for industrial controllers and PLCs.
Test and Measurement Equipment
It can buffer signals in test equipment, ensuring accurate signal transmission to measurement circuits.
Telecommunications
In telecom infrastructure, this buffer can drive long traces and backplane connections with its high current capability.
- Q: What logic family does the SN74LV125ATDBR belong to?
- A: It is part of the 74LV family, which offers low-voltage operation with high drive.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 4 channels, used for signal buffering.
- Q: What is the output type?
- A: It features 3-State outputs for bus-oriented applications.
- Q: What is the operating voltage?
- A: It operates from 4.5V to 5.5V, suitable for 5V systems.
- Q: What is the output current?
- A: It can source and sink 16mA, providing strong drive capability.
- Q: What package is this available in?
- A: It comes in a 14-SSOP package with a 5.30mm width.
