Texas Instruments SN74LV245ADGSR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LV |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 16mA, 16mA |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TFSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 20-VSSOP |
| ROHS |  |

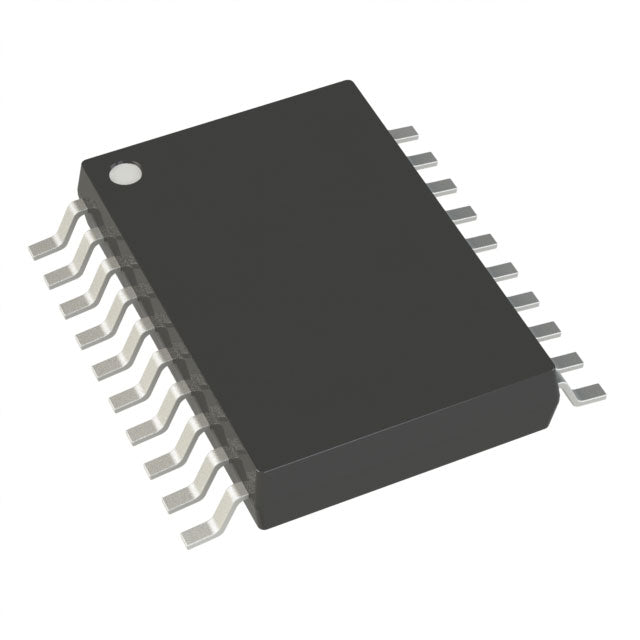

The SN74LV245ADGSR is a single non-inverting transceiver from Texas Instruments, featuring 3-State outputs and bidirectional data flow. It operates from 2V to 5.5V and provides 16mA source/sink current. Housed in a 20-TFSOP package, it is ideal for bus interfacing, level translation, and data buffering in low-voltage systems.
- Bidirectional Operation: Allows data flow in both directions, reducing component count.
- Wide 2V to 5.5V Supply: Supports both 3.3V and 5V logic, simplifying mixed-voltage designs.
- High Drive Current (16mA): Drives multiple loads and long traces effectively.
- 3-State Outputs: Enables bus isolation and hot-swap capability.
Bidirectional Data Bus
As a transceiver, the SN74LV245ADGSR allows bidirectional data flow between two buses, controlled by the direction pin, ideal for microcontroller-to-peripheral communication.
3.3V/5V Level Translation
With a 2V-5.5V supply, it can translate signals between 3.3V and 5V logic, enabling mixed-voltage system design.
Memory Data Bus Buffering
Use it to buffer the data bus between a CPU and memory devices, providing isolation and drive strength.
Industrial Sensor Networks
Its wide temperature range (-40°C to 125°C) and bidirectional capability make it suitable for industrial sensor data acquisition.
Peripheral Interface (SPI/I2C)
Can buffer and level-shift SPI or I2C lines in systems with multiple voltage domains, ensuring reliable communication.
Hot-Swap Applications
3-State outputs allow the transceiver to be disconnected from the bus, facilitating hot-swapping of cards in backplane systems.
- Q: What logic family is the SN74LV245ADGSR?
- A: It belongs to the 74LV (Low-Voltage) family.
- Q: What is the function of this IC?
- A: It is a single (1-channel) non-inverting transceiver, allowing bidirectional data flow.
- Q: What is the output type?
- A: It features 3-State outputs for bus-oriented applications.
- Q: What is the voltage range?
- A: It operates from 2V to 5.5V, compatible with 3.3V and 5V systems.
- Q: What is the drive current?
- A: It can source and sink 16mA per channel.
- Q: What package is available?
- A: It comes in a 20-pin TFSOP package (3.00mm width).
