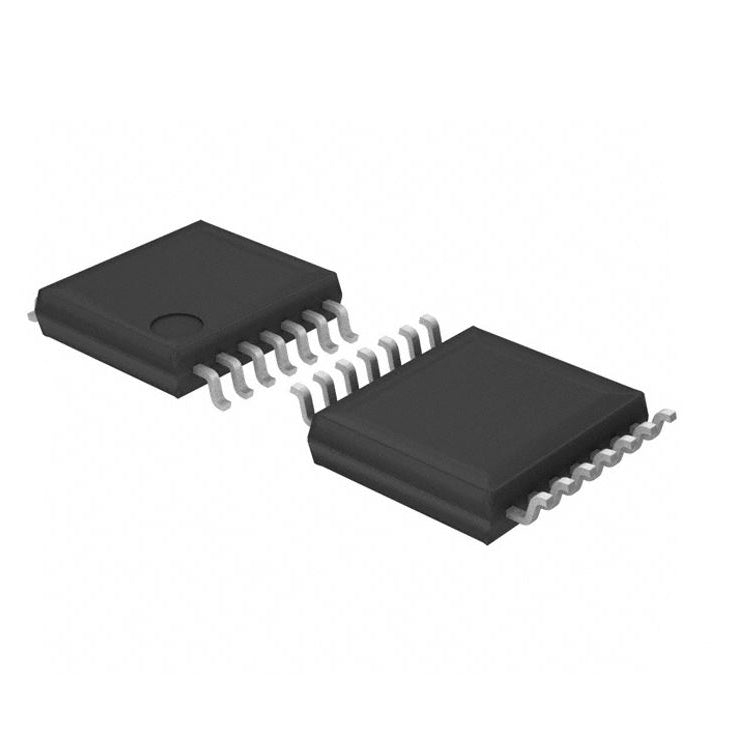

Texas Instruments SN74LVC07ADBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.36 | $0.36 |
| 15+ | $0.35 | $5.25 |
| 25+ | $0.34 | $8.50 |
| 50+ | $0.32 | $16.00 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Open Drain |
| Current - Output High, Low | -, 24mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SSOP |
| ROHS |  |
The SN74LVC07ADBR from Texas Instruments is a hex non-inverting buffer with open-drain outputs. It operates from 1.65V to 5.5V, making it highly versatile for low-voltage and mixed-voltage systems. The open-drain outputs can sink up to 24mA, allowing for direct driving of LEDs or implementation of wired-OR logic. This buffer is commonly used in level shifting, I2C bus buffering, and signal conditioning applications.
- Open-Drain Outputs: Enables level shifting and wired-OR logic, providing design flexibility.
- Wide Supply Range: 1.65V to 5.5V supports a variety of logic levels, from 1.8V to 5V.
- High Sink Current: 24mA sink capability allows direct driving of LEDs and other loads.
- 5V Tolerant Inputs: Inputs can accept 5V signals even when operating at lower supply voltages, simplifying mixed-voltage interfacing.
Level Shifting with Open-Drain Outputs
The SN74LVC07ADBR is ideal for level shifting, as the open-drain output can be pulled up to a different voltage than the supply, enabling bidirectional level translation.
Wired-OR Logic
Multiple open-drain outputs can be connected together to implement wired-OR logic, commonly used in interrupt lines and bus request signals.
Driving LEDs and Relays
The 24mA sink current capability allows direct driving of LEDs or relay coils, with the pull-up resistor limiting the current.
I2C and SMBus Interfacing
Open-drain outputs are required for I2C and SMBus communication, making this buffer suitable for bus expansion and buffering.
Mixed-Voltage Systems
With a supply range of 1.65V to 5.5V, it can interface between different logic levels, such as 1.8V, 2.5V, 3.3V, and 5V.
Power Sequencing and Reset Circuits
Use it to buffer reset signals or power-good indicators, where open-drain outputs allow for easy connection to multiple devices.
- Q: What is the logic family of the SN74LVC07ADBR?
- A: It belongs to the 74LVC family, which is a low-voltage CMOS logic family with 5V tolerant inputs.
- Q: What is the function of this IC?
- A: It is a hex buffer with non-inverting outputs, but with open-drain outputs.
- Q: How many channels does it have?
- A: It has 6 independent buffer channels.
- Q: What is the output type?
- A: The outputs are open-drain, requiring external pull-up resistors to define the high level.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 5.5V, making it suitable for a wide range of low-voltage applications.
- Q: What package is available?
- A: It is available in a 14-SSOP (0.209", 5.30mm Width) package.
