Texas Instruments SN74LVC07ANSR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.58 | $0.58 |
| 15+ | $0.56 | $8.40 |
| 25+ | $0.55 | $13.75 |
| 50+ | $0.52 | $26.00 |
| 100+ | $0.46 | $46.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Open Drain |
| Current - Output High, Low | -, 24mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

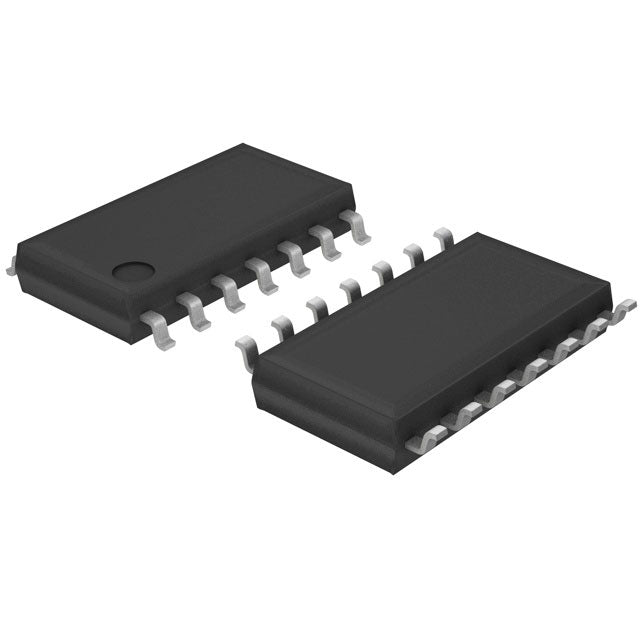

| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SO |
| ROHS |  |
The SN74LVC07ANSR is a high-performance hex buffer from Texas Instruments, part of the 74LVC logic family. It features six non-inverting channels with open-drain outputs, allowing for flexible wired-OR configurations and level translation. Operating from 1.65V to 5.5V, it supports both 3.3V and 5V systems. Each output can sink up to 24mA, making it ideal for driving LEDs or interfacing with other logic families. Housed in a compact 14-SOIC package, this buffer is perfect for bus interfacing, signal buffering, and industrial control applications.
- Wide 1.65V to 5.5V Supply Range: Compatible with both 3.3V and 5V systems, simplifying mixed-voltage design.
- Open-Drain Outputs: Enables wired-OR connections and level shifting without external logic.
- High Sink Current (24mA): Can directly drive LEDs and low-power loads, reducing component count.
- Extended Temperature Range (-40°C to 125°C): Suitable for harsh automotive and industrial environments.
Level Shifting for Mixed-Voltage Systems
With open-drain outputs and a wide 1.65V to 5.5V supply range, the SN74LVC07ANSR can translate signals between 3.3V and 5V logic, simplifying mixed-voltage interfacing.
Wired-OR Bus Interfacing
Open-drain outputs allow multiple devices to share a common bus line. This is ideal for I2C or interrupt lines where any device can pull the line low.
Driving LEDs and Relays
Each of the 6 channels can sink up to 24mA, making it suitable for directly driving LEDs, relays, or other low-power inductive loads with proper flyback diodes.
Signal Buffering for Long Traces
Use this buffer to regenerate weak signals traveling over long PCB traces or cables, reducing signal degradation and improving noise immunity.
Industrial Control Inputs
In industrial environments, this buffer can interface between high-voltage sensors and low-voltage logic, providing a clean, buffered signal to the controller.
Automotive ECU Signal Conditioning
With a temperature range of -40°C to 125°C, it is well-suited for automotive electronic control units (ECUs) requiring robust signal buffering.
- Q: What is the logic family of the SN74LVC07ANSR?
- A: It belongs to the 74LVC logic family, known for low-voltage operation and high-speed performance.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 6 channels, ideal for signal buffering and line driving.
- Q: What type of output does it have?
- A: It features open-drain outputs, allowing for wired-OR connections and level shifting.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 5.5V, making it compatible with both 3.3V and 5V systems.
- Q: What package is available?
- A: It comes in a 14-SOIC package with a width of 5.30mm.
- Q: What is the sink current capability?
- A: The output can sink up to 24mA, suitable for driving LEDs and low-power loads.
