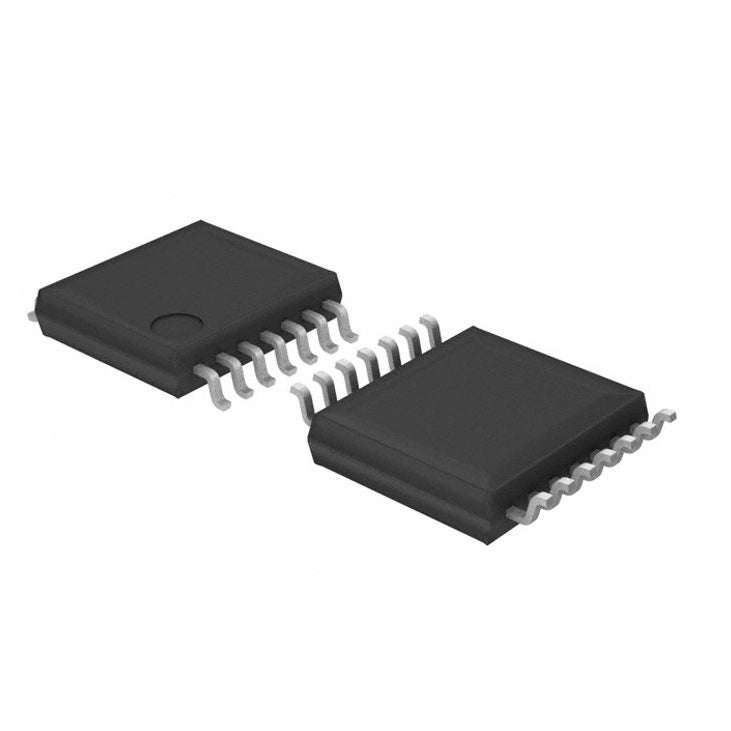

Texas Instruments SN74LVC126ADBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.27 | $0.27 |
| 15+ | $0.26 | $3.90 |
| 25+ | $0.25 | $6.25 |
| 50+ | $0.24 | $12.00 |
| 100+ | $0.21 | $21.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SSOP |
| ROHS |  |
The SN74LVC126ADBR from Texas Instruments is a quad, non-inverting buffer from the 74LVC logic family. It features four independent 3-state output buffers, each capable of driving 24mA, and operates over a supply voltage range of 1.65V to 3.6V. This makes it an excellent choice for bus interfacing, memory buffering, and signal distribution in 3.3V digital systems. The 14-SSOP package offers a compact footprint for multi-channel designs.
- Four Independent 3-State Buffers: Provides flexible bus control and isolation for multi-channel applications.
- Optimized for 3.3V Operation (1.65V-3.6V): Ideal for modern low-voltage digital systems.
- 24mA Output Drive: Ensures reliable signal transmission to multiple loads.
- Compact 14-SSOP Package: Saves board space in multi-channel designs.
Quad Bus Line Driver
The SN74LVC126ADBR's four 3-state buffers are ideal for driving a 4-bit data bus. Each channel can be independently enabled or disabled, allowing for flexible bus control and isolation.
Memory Address and Data Buffering
In memory systems, this quad buffer can be used to buffer address and data lines, providing the necessary drive strength and isolation to interface with multiple memory banks.
Level Shifting in 3.3V Systems
With a supply range of 1.65V to 3.6V, this buffer is optimized for 3.3V systems and can be used to shift signals between 1.8V and 3.3V logic domains.
Peripheral Interface Buffering
This IC can buffer control and data signals between a microcontroller and peripheral devices like LCDs, ADCs, or communication modules, ensuring signal integrity.
Industrial Control Signal Distribution
In industrial PLCs, this quad buffer can distribute control signals to multiple actuators or sensors, providing robust drive and electrical isolation.
Backplane and Card Edge Interfacing
The 3-state outputs are perfect for driving signals onto a backplane or card-edge connector, where multiple boards may need to share the same bus lines.
- Q: What is the logic family of the SN74LVC126ADBR?
- A: It belongs to the 74LVC (Low-Voltage CMOS) logic family.
- Q: What is the function of this IC?
- A: It is a quad (4-channel), non-inverting buffer with 3-state outputs.
- Q: How many channels does it have?
- A: It has 4 channels.
- Q: What is the output type?
- A: 3-State output, allowing each channel to be independently disabled for bus applications.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V.
- Q: What package is available?
- A: It is available in a 14-SSOP package.
