Texas Instruments SN74LVC126ADT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.87 | $0.87 |
| 15+ | $0.85 | $12.75 |
| 25+ | $0.83 | $20.75 |
| 50+ | $0.78 | $39.00 |
| 100+ | $0.69 | $69.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

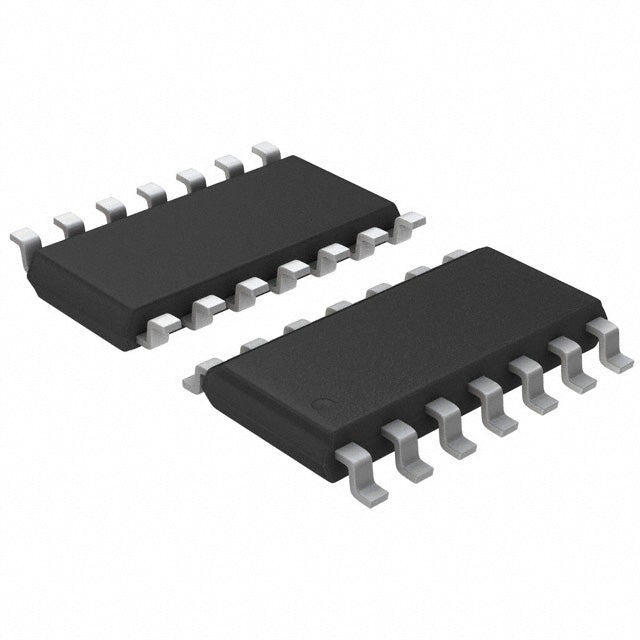

| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| ROHS |  |
The SN74LVC126ADT is a quad non-inverting buffer from Texas Instruments' 74LVC family. It operates from 1.65V to 3.6V and can source/sink 24mA. The 3-state outputs allow for bus-oriented applications. Housed in a 14-SOIC package, it is suitable for high-speed, low-power systems.
- High Drive Current (24mA): Can drive heavier loads, reducing the need for additional driver ICs.
- Wide Temperature Range (-40°C to 125°C): Suitable for industrial and automotive applications.
- 3-State Outputs: Enable efficient bus sharing and multiplexing.
- Low-Voltage Operation (1.65V-3.6V): Compatible with modern low-voltage logic.
High-Speed Bus Interfacing
The 74LVC family's high-speed performance and 3-state outputs make it ideal for buffering data buses in microprocessors and DSPs.
Memory Address Buffering
It can buffer address lines between a controller and memory devices, ensuring signal integrity and driving capability.
Level Shifting for 3.3V to 1.8V
With a supply range of 1.65V to 3.6V, it can translate signals between 3.3V and 1.8V logic levels.
Peripheral Interface Buffering
It provides the necessary drive strength to interface with peripherals like LEDs or relays that require more current than a logic gate can provide.
Industrial Control Systems
Its wide temperature range (-40°C to 125°C) makes it suitable for harsh industrial environments.
Telecommunications Equipment
Used in line cards and switching systems where high-speed, low-voltage logic is essential.
- Q: What is the logic family of the SN74LVC126ADT?
- A: It is from the 74LVC family, known for low-voltage operation and high speed.
- Q: What function does this device perform?
- A: It is a quad (4-channel) non-inverting buffer with 3-state outputs.
- Q: How many channels are available?
- A: It has 4 independent channels.
- Q: What is the output type?
- A: The outputs are 3-State, allowing them to be placed in a high-impedance state.
- Q: What is the voltage range?
- A: It operates from 1.65V to 3.6V.
- Q: What package is it available in?
- A: It comes in a 14-pin SOIC package.
SN74LVC126ADT.pdf
- Q: What is the logic family of the SN74LVC126ADT?
- A: It is from the 74LVC family, known for low-voltage operation and high speed.
- Q: What function does this device perform?
- A: It is a quad (4-channel) non-inverting buffer with 3-state outputs.
- Q: How many channels are available?
- A: It has 4 independent channels.
- Q: What is the output type?
- A: The outputs are 3-State, allowing them to be placed in a high-impedance state.
- Q: What is the voltage range?
- A: It operates from 1.65V to 3.6V.
- Q: What package is it available in?
- A: It comes in a 14-pin SOIC package.
