Texas Instruments SN74LVC2244ADBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.72 | $0.72 |
| 15+ | $0.70 | $10.50 |
| 25+ | $0.68 | $17.00 |
| 50+ | $0.65 | $32.50 |
| 100+ | $0.57 | $57.00 |
| N+ | $0.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

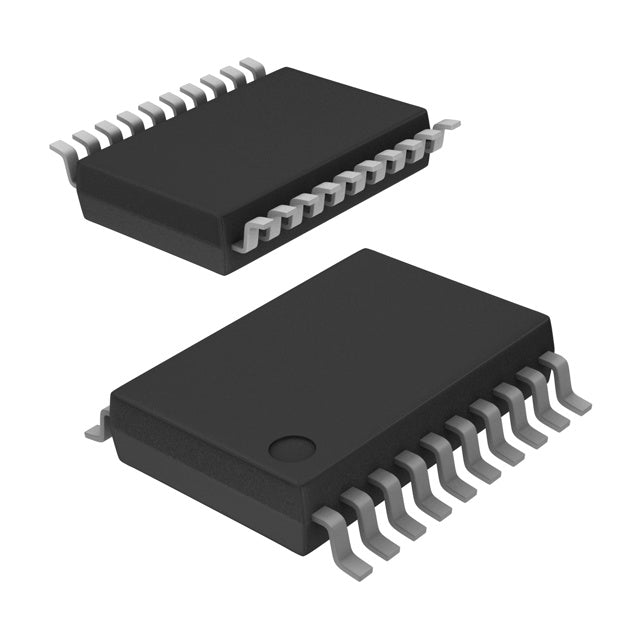

| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| ROHS |  |
The SN74LVC2244ADBR is a dual 4-bit buffer from Texas Instruments, part of the 74LVC logic family. It provides 8 non-inverting channels with 3-State outputs, delivering 12mA of output current per channel. Operating from a low 1.65V to 3.6V supply, it is perfect for modern low-voltage systems, including 3.3V and 1.8V applications. This buffer is widely used for memory interfacing, FPGA signal conditioning, and portable device power management. The 20-SSOP package offers a compact footprint for space-constrained PCBs. Its operating temperature range of -40°C to 85°C covers most commercial and industrial applications.
- Low 1.65V to 3.6V Supply Range: Ideal for battery-powered and low-voltage digital systems.
- 12mA Output Current: Ensures fast switching and reliable signal drive for high-speed buses.
- Dual 4-bit Configuration: Provides independent enable controls for flexible design.
- 3-State Outputs: Facilitates bus sharing and prevents data conflicts in multi-master systems.
Low-Voltage Bus Interfacing
Use the SN74LVC2244ADBR to buffer data lines in 3.3V or 1.8V systems. Its 1.65V to 3.6V range ensures compatibility with modern low-voltage processors and FPGAs.
Signal Buffering for High-Speed Memory
Buffer address and control signals to DDR or SRAM modules. The 12mA output current provides fast edge rates, maintaining signal integrity at high frequencies.
Level Shifting in Mixed-Voltage Designs
Interface 1.8V logic to 3.3V peripherals. The 74LVC family accepts inputs up to 5.5V (with VCC at 3.3V), allowing safe level translation.
Portable Device Power Management
In smartphones or wearables, this buffer manages control signals for power management ICs, operating efficiently at low voltages to extend battery life.
FPGA/CPLD Signal Conditioning
Buffer outputs from FPGAs or CPLDs to drive external peripherals. The 3-State outputs allow multiple FPGAs to share a common bus.
Industrial Sensor Arrays
In industrial IoT sensors, this buffer conditions digital signals from multiple sensors to a central controller, operating reliably at 3.3V.
- Q: What logic family does the SN74LVC2244ADBR belong to?
- A: It belongs to the 74LVC family, designed for low-voltage 1.65V to 3.6V operation.
- Q: What is the function of this IC?
- A: It is a dual 4-bit buffer with non-inverting outputs, providing 8 total buffer channels.
- Q: How many channels does it have?
- A: It has 2 channels (2 x 4-bit), each with independent enable controls.
- Q: What is the output type?
- A: It features 3-State outputs, allowing outputs to be placed in a high-impedance state.
- Q: What is the voltage range?
- A: The supply voltage range is 1.65V to 3.6V, ideal for low-power 3.3V and lower systems.
- Q: What package is available?
- A: It comes in a 20-SSOP (0.209", 5.30mm Width) package.
