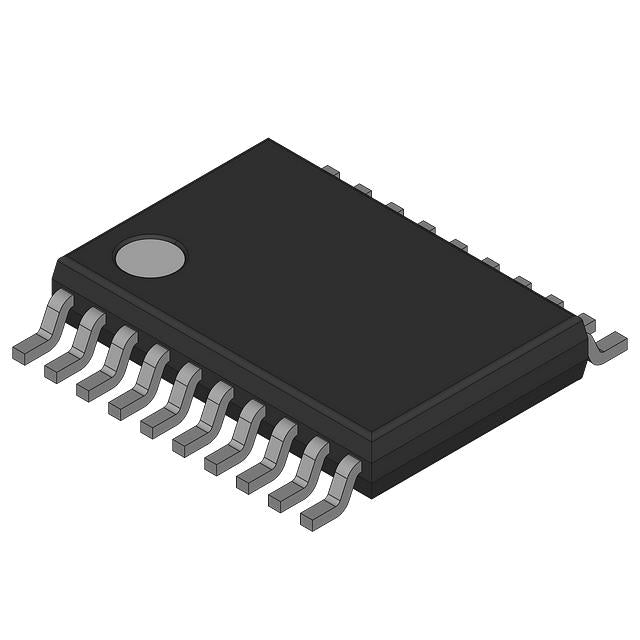

Texas Instruments SN74LVC244APWRG3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.74 | $0.74 |
| 15+ | $0.72 | $10.80 |
| 25+ | $0.70 | $17.50 |
| 50+ | $0.66 | $33.00 |
| 100+ | $0.59 | $59.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| ROHS |  |
The SN74LVC244APWRG3 is a dual-channel non-inverting buffer from Texas Instruments, part of the 74LVC logic family. It operates from 1.65V to 3.6V, with 3-State outputs and 24mA drive capability. Its low-voltage operation makes it ideal for portable and battery-powered devices. Packaged in a 20-TSSOP, it offers a compact solution for modern low-power designs.
- Low-Voltage Operation (1.65V-3.6V): Ideal for battery-powered and low-power applications.
- High Drive (24mA): Ensures reliable signal transmission even at low voltages.
- 3-State Outputs: Facilitates bus sharing in multi-device systems.
- Wide Temperature Range (-40°C to 125°C): Suitable for industrial environments.
Low-Voltage Bus Interfacing
Use the SN74LVC244APWRG3 for 1.8V or 2.5V bus systems, ensuring compatibility with modern low-power processors.
FPGA Configuration Buffering
Buffer configuration signals between an FPGA and configuration memory, maintaining signal integrity.
Portable Electronics
Its 1.65V minimum voltage makes it perfect for battery-operated devices like smartphones and wearables.
Level Shifting (1.8V to 3.3V)
With 3.6V tolerance, it can shift signals from 1.8V logic to 3.3V peripherals.
Server Motherboards
Buffer control signals in server systems, where low-voltage operation reduces power consumption.
IoT Devices
Interface sensors and microcontrollers in IoT nodes, providing reliable signal buffering.
- Q: What is the logic family of the SN74LVC244APWRG3?
- A: It is from the 74LVC family, known for low-voltage operation and high speed.
- Q: What is the function of this IC?
- A: It is a non-inverting buffer with 2 channels, providing signal buffering.
- Q: What is the output type?
- A: It has 3-State outputs for bus-oriented designs.
- Q: What is the voltage range?
- A: It operates from 1.65V to 3.6V, ideal for low-voltage systems.
- Q: What is the package?
- A: It comes in a 20-TSSOP (0.173", 4.40mm Width) package.
- Q: What is the output current?
- A: It can source and sink 24mA each.
