Texas Instruments SN74LVC2G17QDCKRSV
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | | |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 2 |
| Input Type | Schmitt Trigger |
| Output Type | Push-Pull |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-70-6 |
| ROHS |  |

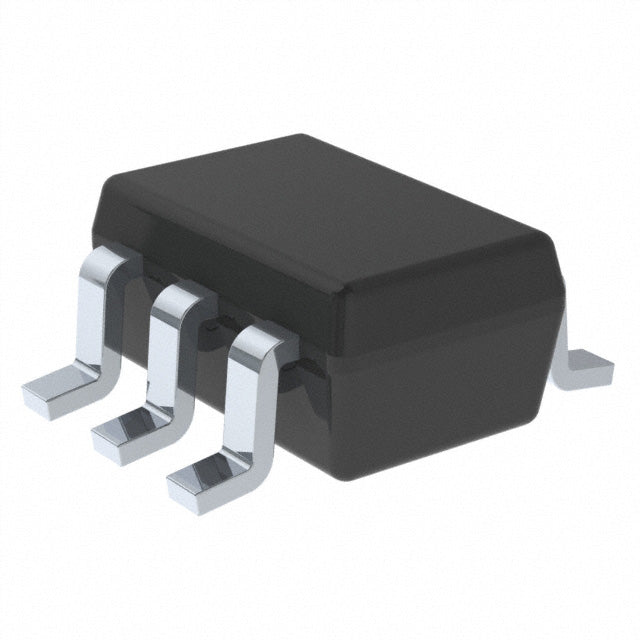

The SN74LVC2G17QDCKRSV is a dual non-inverting buffer from the 74LVC family, featuring Schmitt-trigger inputs for noise immunity. It operates from 1.65V to 5.5V, making it versatile for low-voltage and standard logic systems. With push-pull outputs capable of sourcing or sinking 32mA, it can drive a variety of loads. Housed in a compact 6-TSSOP/SC-88/SOT-363 package, it is perfect for space-constrained applications like portable electronics and automotive modules.
- Schmitt-Trigger Inputs: Provides hysteresis for noise-free switching, even with slow or noisy input signals.
- Wide 1.65V to 5.5V Supply: Compatible with 1.8V, 2.5V, 3.3V, and 5V systems, reducing design complexity.
- High Drive Current (32mA): Ensures reliable signal transmission to capacitive loads and long traces.
- Compact 6-Pin Package: Saves PCB space, ideal for miniaturized consumer and industrial devices.
Signal Conditioning for Noisy Environments
The Schmitt-trigger inputs of the SN74LVC2G17QDCKRSV clean up slow or noisy signals, such as those from mechanical switches or sensors. This ensures clean digital edges for microcontrollers.
Level Shifting in Multi-Voltage Systems
With a 1.65V to 5.5V supply, it can buffer signals between 1.8V and 3.3V logic domains, enabling communication between low-voltage processors and peripherals.
Clock Buffering and Distribution
Use this buffer to fan out clock signals to multiple loads. The push-pull outputs provide fast rise/fall times, minimizing skew in timing-critical applications.
Portable and Battery-Powered Devices
Low-voltage operation (down to 1.65V) makes it ideal for wearables and IoT devices, where power consumption is critical.
Automotive ECUs and Sensors
The -40°C to 125°C temperature range and robust design make it suitable for automotive engine control units and sensor interfaces.
Interfacing with High-Impedance Inputs
When driving high-impedance ADC inputs or CMOS logic, this buffer provides the necessary drive strength (32mA) to ensure accurate signal levels.
- Q: What logic family does the SN74LVC2G17QDCKRSV belong to?
- A: It is part of the 74LVC family, known for low-voltage operation and high-speed performance.
- Q: What is the function of this IC?
- A: It is a dual non-inverting buffer with Schmitt-trigger inputs, providing noise-immune signal conditioning.
- Q: How many channels are available?
- A: It has 2 independent buffer channels, ideal for signal cleanup in compact designs.
- Q: What is the output type?
- A: It features push-pull outputs, capable of driving loads without external pull-up resistors.
- Q: What is the voltage range?
- A: It operates from 1.65V to 5.5V, supporting low-power and standard logic levels.
- Q: What package is used?
- A: It comes in a 6-TSSOP/SC-88/SOT-363 package, suitable for space-constrained PCBs.
