Texas Instruments SN74LVC2G17YZPR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.71 | $0.71 |
| 15+ | $0.69 | $10.35 |
| 25+ | $0.68 | $17.00 |
| 50+ | $0.64 | $32.00 |
| 100+ | $0.56 | $56.00 |
| N+ | $0.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVC |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | Schmitt Trigger |
| Output Type | Push-Pull |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

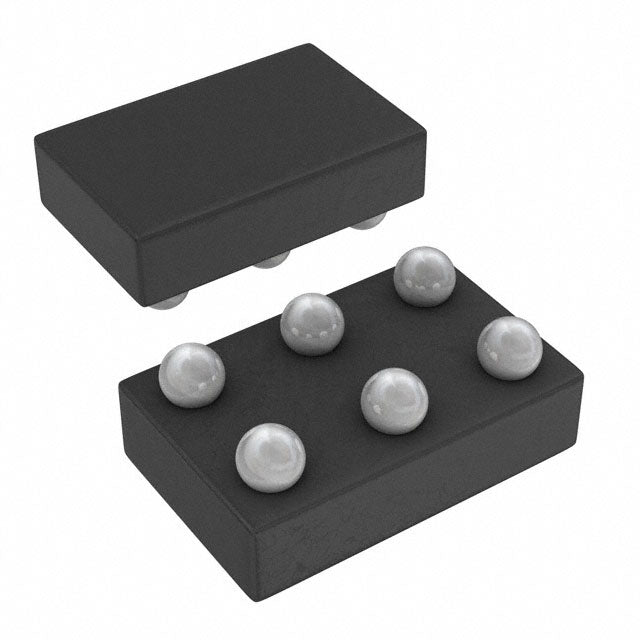

| Package / Case | 6-XFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA |
| ROHS |  |
The SN74LVC2G17YZPR is a dual Schmitt-trigger buffer from Texas Instruments, part of the 74LVC logic family. It operates from 1.65V to 5.5V and features push-pull outputs that can source or sink 32mA. The Schmitt-trigger inputs provide hysteresis, making it ideal for conditioning noisy signals and interfacing with slow-rise-time inputs. The ultra-small 6-pin DSBGA package is perfect for compact, portable electronics.
- Schmitt-Trigger Inputs: Provides noise immunity and cleans up slow or noisy signals.
- Wide 1.65V to 5.5V Supply Range: Compatible with multiple logic levels, simplifying mixed-voltage design.
- High 32mA Drive Current: Drives heavy loads and long traces without signal degradation.
- Ultra-Small DSBGA Package: Saves critical board space in portable and wearable devices.
Signal Conditioning for Noisy Environments
The Schmitt-trigger inputs provide hysteresis, cleaning up noisy or slow-rising signals from switches, sensors, and encoders.
Level Shifting in Multi-Voltage Systems
With a 1.65V to 5.5V supply range, it can shift signals between 1.8V, 2.5V, 3.3V, and 5V logic domains.
Clock and Reset Signal Buffering
It buffers clock and reset signals, ensuring clean edges and sufficient drive strength for multiple loads.
Portable Device Interface
In battery-powered devices, its low-voltage operation and tiny DSBGA package make it ideal for space-constrained PCBs.
Oscillator and RC Circuit Buffering
The Schmitt-trigger action allows it to buffer signals from RC oscillators, providing a clean square wave output.
Push-Button Debouncing
It can debounce mechanical switches by filtering out contact bounce, providing a clean logic signal to a microcontroller.
- Q: What is the logic family of the SN74LVC2G17YZPR?
- A: It belongs to the 74LVC family, known for low-voltage operation and high drive strength.
- Q: What is the function and output type?
- A: It is a non-inverting buffer with Schmitt-trigger inputs and push-pull outputs.
- Q: How many channels does it have?
- A: It has 2 independent buffer channels.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 5.5V, covering a wide range of logic levels.
- Q: What is the package type?
- A: It is available in a 6-pin XFBGA/DSBGA package (6-XFBGA, DSBGA).
- Q: What is the output current capability?
- A: It can source and sink 32mA of current per output.
SN74LVC2G17YZPR.pdf
- Q: What is the logic family of the SN74LVC2G17YZPR?
- A: It belongs to the 74LVC family, known for low-voltage operation and high drive strength.
- Q: What is the function and output type?
- A: It is a non-inverting buffer with Schmitt-trigger inputs and push-pull outputs.
- Q: How many channels does it have?
- A: It has 2 independent buffer channels.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 5.5V, covering a wide range of logic levels.
- Q: What is the package type?
- A: It is available in a 6-pin XFBGA/DSBGA package (6-XFBGA, DSBGA).
- Q: What is the output current capability?
- A: It can source and sink 32mA of current per output.
