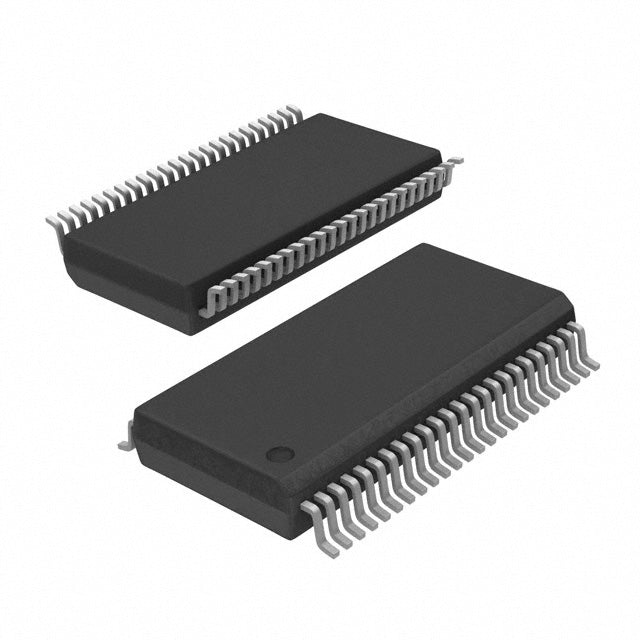

Texas Instruments SN74LVCH16541ADLR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.50 | $1.50 |
| 15+ | $1.45 | $21.75 |
| 25+ | $1.42 | $35.50 |
| 50+ | $1.34 | $67.00 |
| 100+ | $1.19 | $119.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVCH |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 48-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 48-SSOP |
| ROHS |  |
The SN74LVCH16541ADLR is a 16-bit non-inverting buffer from Texas Instruments, designed for low-voltage 1.65V to 3.6V systems. It features two independent 8-bit channels with 3-State outputs, each capable of driving 24mA. This device is part of the 74LVCH family, known for low power consumption and high-speed operation. The 48-pin BSSOP package is ideal for space-constrained designs. It is commonly used for bus buffering, signal isolation, and level shifting in consumer electronics, industrial controls, and communication infrastructure.
- Dual 8-Bit Channels: Provides flexibility for buffering two independent buses in one package.
- Low-Voltage Operation (1.65V-3.6V): Compatible with modern low-power logic and mixed-voltage systems.
- 24mA Output Drive: Ensures strong signal integrity for high-speed and long-distance transmission.
- 3-State Outputs: Enables bus sharing and reduces power consumption when outputs are disabled.
- Wide Temperature Range (-40°C to 85°C): Suitable for most commercial and industrial applications.
Octal Bus Buffering
The SN74LVCH16541ADLR provides two independent 8-bit buffer sections, making it perfect for buffering two separate 8-bit data buses in microcontroller or DSP systems.
Memory Expansion
Use this buffer to drive additional memory banks in embedded systems. The 3-State outputs allow easy multiplexing of memory chips without additional logic.
Level Translation for Sensors
In sensor interface circuits, this buffer can translate 1.8V sensor outputs to 3.3V logic levels, ensuring compatibility with modern microcontrollers.
Backplane Drivers
For telecom and networking backplanes, the 24mA drive capability and 3-State outputs enable reliable data transmission over long, high-capacitance traces.
FPGA Configuration Interfaces
Buffer configuration data lines between an FPGA and configuration memory (e.g., SPI flash) to reduce signal loading and improve timing margins.
Test and Measurement Equipment
In automated test equipment, this buffer can fan out control signals to multiple measurement channels, ensuring consistent signal levels across all outputs.
- Q: What is the logic family of the SN74LVCH16541ADLR?
- A: It is part of the 74LVCH low-voltage CMOS logic family.
- Q: What is the function of this IC?
- A: It is a 16-bit buffer with non-inverting outputs, organized as 2 channels of 8 bits each.
- Q: What is the output type?
- A: It has 3-State outputs for bus-oriented applications.
- Q: What is the operating voltage range?
- A: It operates from 1.65V to 3.6V.
- Q: What is the output current capability?
- A: It can source and sink 24mA per channel.
- Q: What package is available?
- A: It comes in a 48-pin BSSOP (0.295", 7.50mm Width) package.
